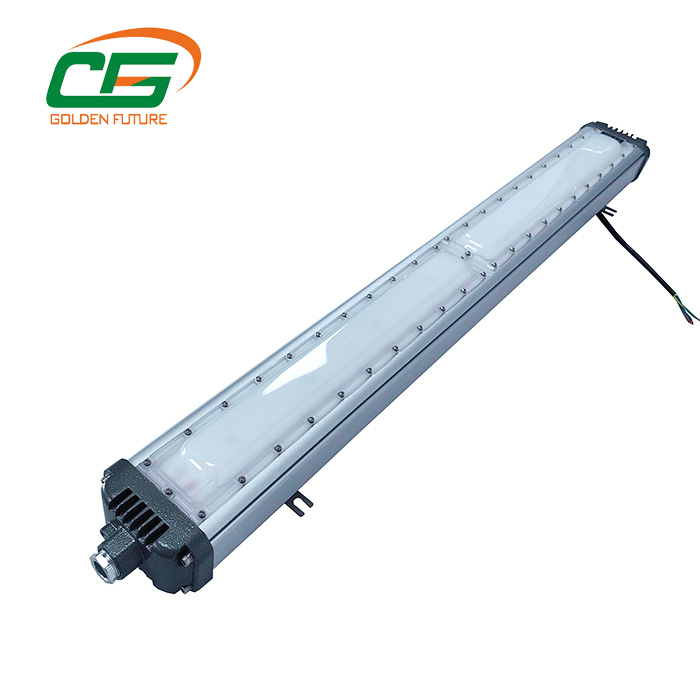

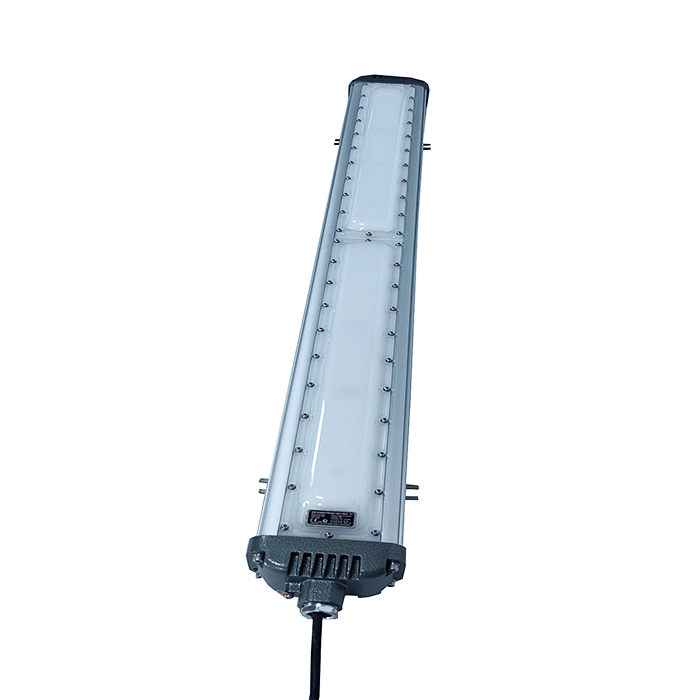

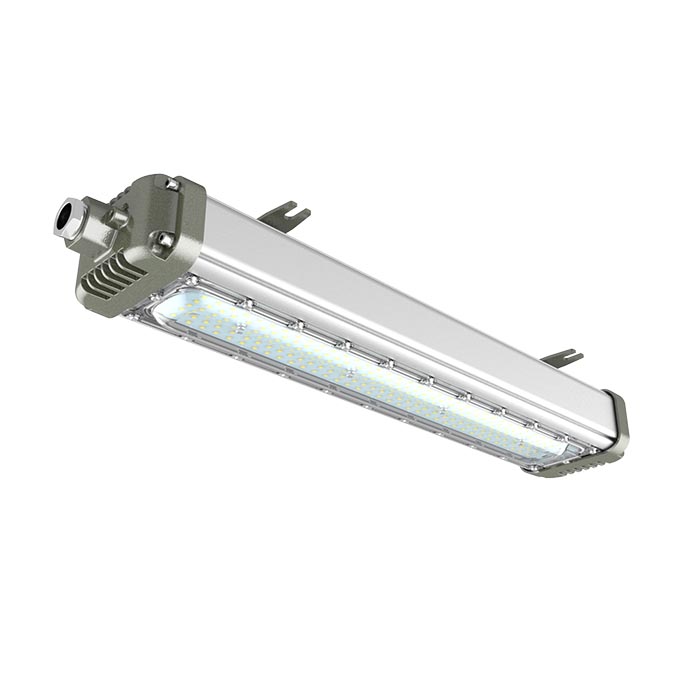

40~120W LED explosion proof light is suitable for Zone 1 and Zone 2 of explosive gas environments (Zone IIA, IIB, IIC), similar explosive gas environments, and Zone 21 and Zone 22 of combustible dust environments (Temperature group: T1-T6/T5).
| Model number | DL52 |
| Power | 40W, 60W, 80W, 100W, 120W |
| Frequency | 50/60Hz |
| Rated Voltage | AC110~240V |
| Light Source | Bridgelux 2835 |
| Light efficiency | 120 lumen/w |
| Operating Temperature | -20~40℃ |
| Power factor | >0.95PF |
| IP Rating | IP66 |
| Anti-corrosion grade | WF2 |
| Ex mark | ExdIICT6 |
| Correlate Color Temperature | 3000-6500K |
| Size (40w and 60w) | 670*100*132mm |
| Size (80w, 100w and 120w) | 1143*125*77mm |
| Weight (40W and 60W) | 3.2kg |
| Weight (80W, 100W and 120w) | 4.9kg |
The light source uses LED light-emitting chips featuring super-high light efficiency and an average service life of up to 100,000 hours. The power supply uses MeanWell's latest wide voltage technology, offering constant current output, short circuit protection, and over-voltage protection. The radiator is made from integral profile extrusion molding, providing a tight structure with excellent heat conduction and dissipation performance.
Designed strictly according to the national explosion-proof standard GB3836. Its explosion-proof performance is highly reliable, meeting and exceeding all required national explosion-proof standard grades and design requirements.
Utilizes high-intensity optical PC material, which is anti-corrosion and anti-impact. The light transmittance can reach 95% ~ 98%, offering uniform soft light irradiation and excellent anti-glare properties.
The surface of the lamp body radiator is treated with anodic oxidation, and the die-casting parts are treated with high-voltage electrostatic spraying. Screw fasteners are made of stainless steel. Combined with high-precision processing technology, the lamp offers high anti-corrosion, high water-proof, and high dust-proof characteristics to work reliably in harsh environments for a long time.

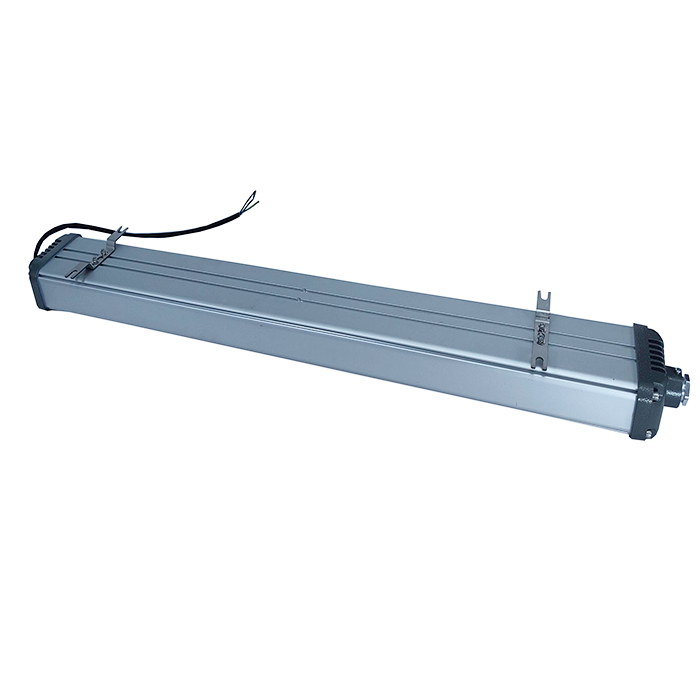

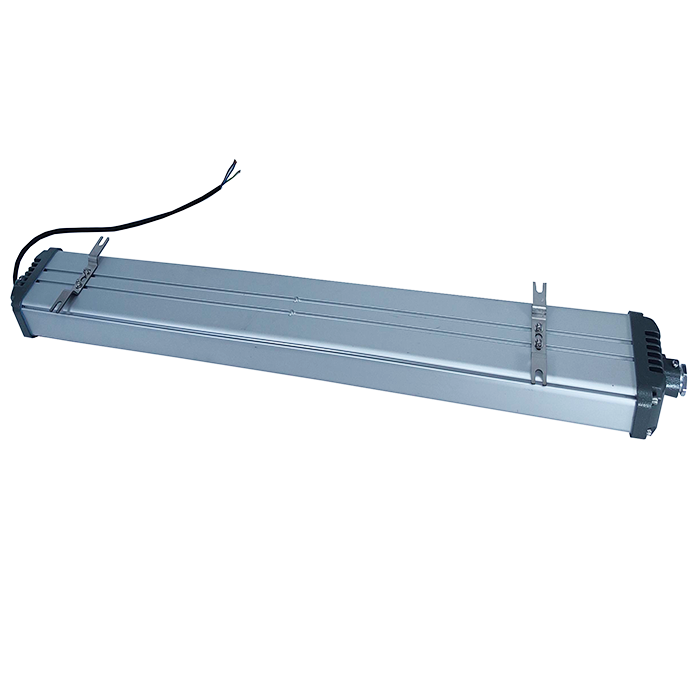

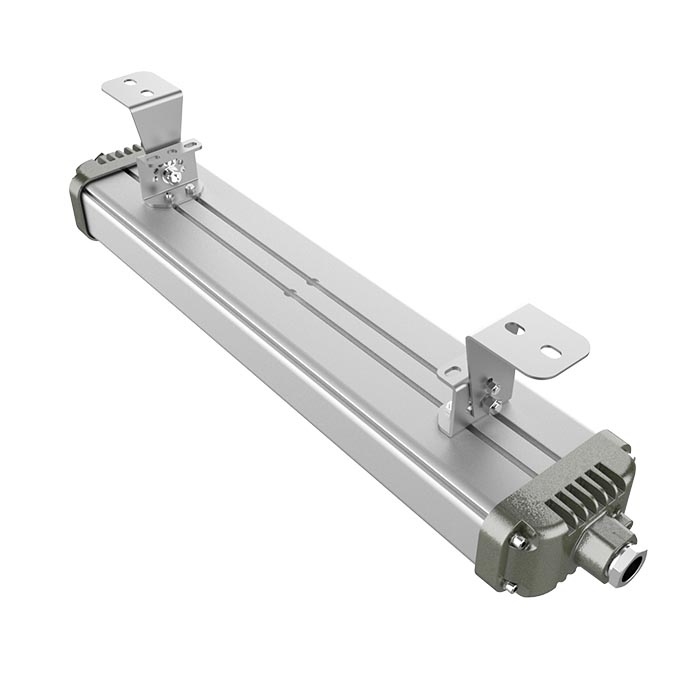

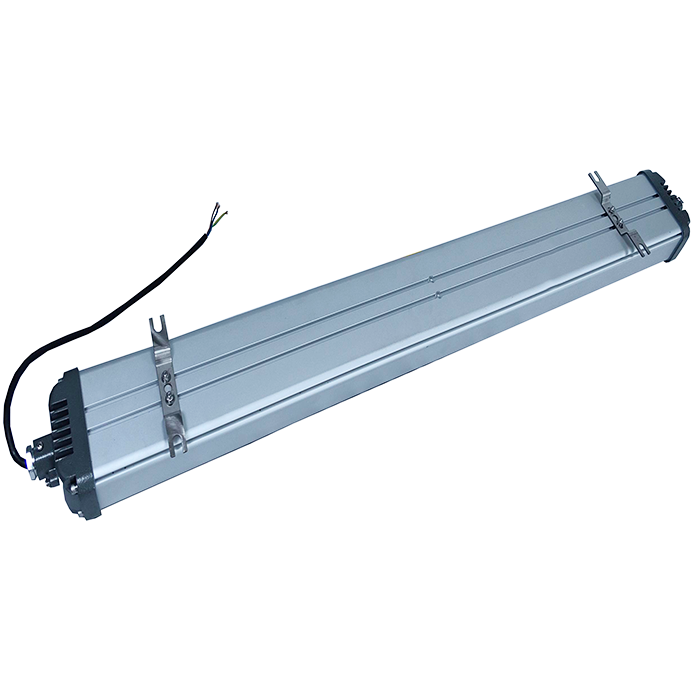

Supports ceiling, wall suction, bending rod, and other installation methods to meet the lighting needs of low ceilings, platforms, high ceilings, high sheds, and other fixed locations. The products are constructed from aseismic materials and shock-absorbing structures, making them especially suitable for various high frequency and strong vibration environments.
The appearance design matches family chemical industry elements with structural fusion. It is exquisite, beautiful, and generous, utilizing hammer gray and metal silver color matching to fit any factory environment.
It is suitable for Zone 1 and Zone 2 of explosive gas environments (Zone IIA, IIB, IIC), as well as Zone 21 and Zone 22 of combustible dust environments.
The light has an IP66 waterproof and dustproof rating and a WF2 anti-corrosion rating, ensuring normal long-term operation in harsh environments.
The DL52 explosion proof LED light is available in multiple power options: 40W, 60W, 80W, 100W, and 120W.
It uses a high-efficiency Bridgelux 2835 light source and a MeanWell power driver with wide voltage technology, offering constant current output, short circuit, and over-voltage protection.
It supports various installation configurations including ceiling mounting, wall suction, and bending rod installation to fit different structures and platform setups.
Yes, the products are made using aseismic materials and shock-absorbing structures, making them especially suitable for environments experiencing high-frequency and strong vibrations.
