| Main Specification | |
|---|---|
| Product | LED Flood Light |
| Intensity | 4348 Lumens |
| LED Lifetime | 100,000 hours |
| Light Source | Cree High Power LED |
| Light Color | White |
| Power | <60W |
| Waterproof | IP66 |
| Operating Voltage | 110~240VAC |
| Warranty | 5 years |

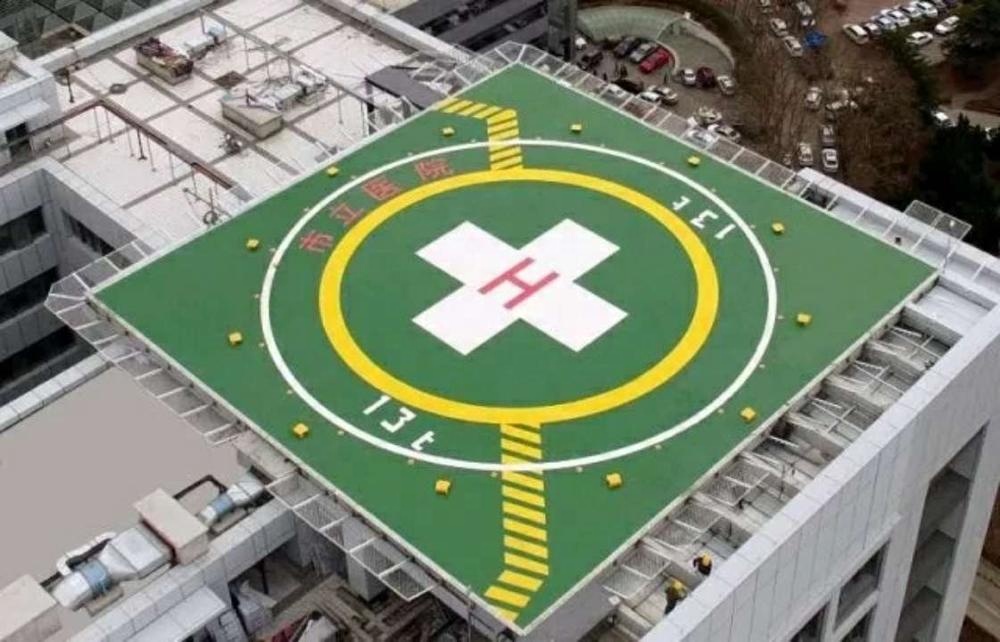

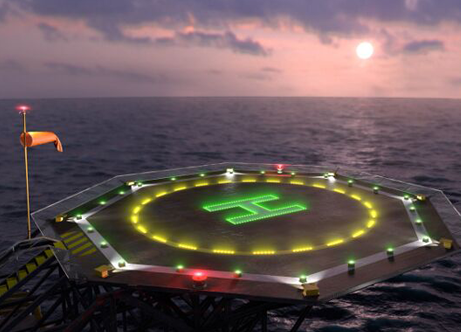

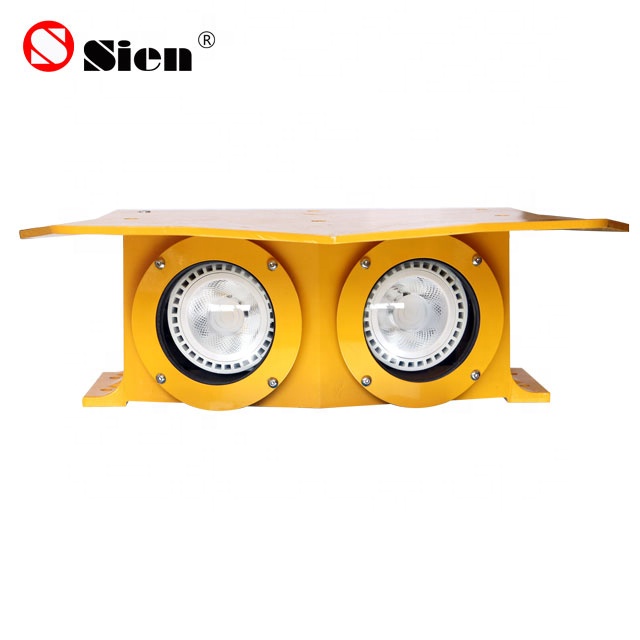

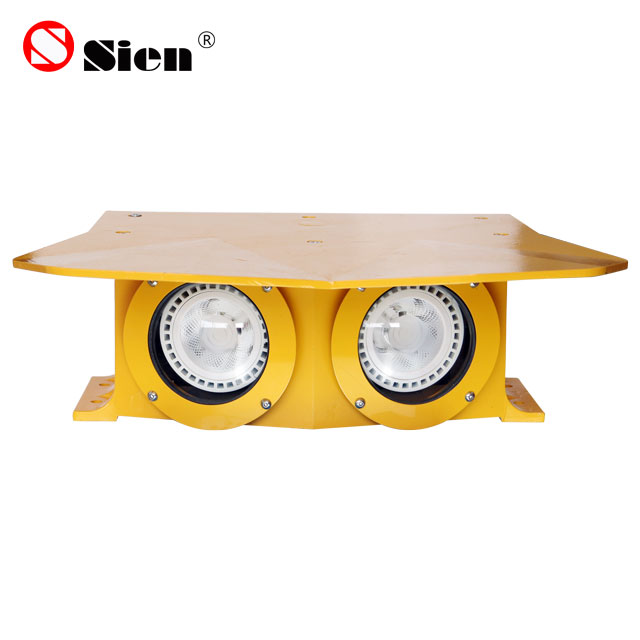

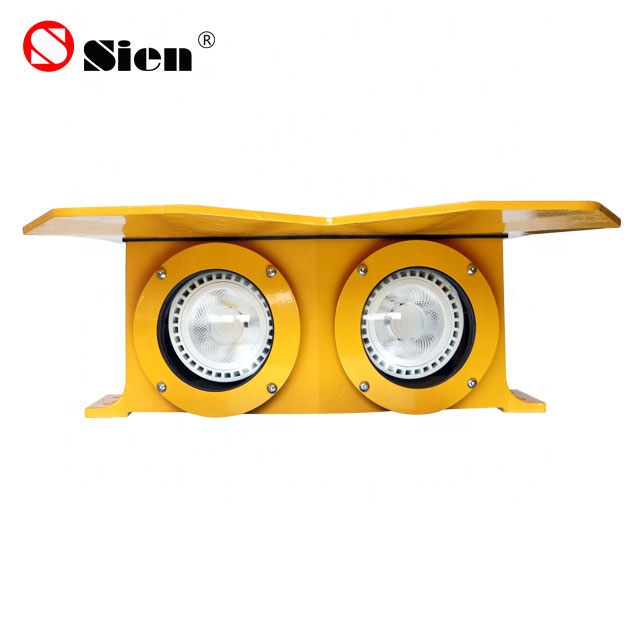

The heavy-duty hooded surface floodlight illuminates the deck and protects the pilot from glare while landing on the pad. The fixture is housed in a weather tight, aluminum casting and powder coated yellow for high visibility. There are four mounting holes for easy installation on any surface.
| Specification Parameters | HL501 | LIL32S |
|---|---|---|
| Light source | Cree LED | Cree LED |
| Intensity | 4348 Lumens | >32.5cd |
| LED Lifetime | >100,000 hours | 100,000 hours |
| LED color | White | Red as standard. Other colors available on request. |
| Electrical Characteristics | ||
| Operating voltage | 110~240VAC | 110~240VAC |
| Power consumption | <60W | 3W |
| Driven mode | Constant current | Constant current |
| Mechanical Characteristics | ||
| Body Material | Die casting aluminum | Die casting aluminum |
| Housing Material | Tempering glass | PC UV Stabilize |
| Weight | 9.40KG | 0.80KG |
| Dimension | See diagram | See diagram |
| Working temperature | -40°C ~ +70°C | -40°C ~ +70°C |
| Humidity | 10% ~ 95% | 10% ~ 95% |
| Wind speed | Up to 150mph (240kph) | Up to 150mph (240kph) |
| Waterproof | IP67 | IP66 |
