Product Description

Product Description
⚠️ The bulk price can be negotiated, please contact us!
⚡
Wattage Range: 40W, 60W, 80W, 100W, 120W, 150W, 200W, 240W (freely choose to meet your needs)
💡
Light Efficiency: 130lm/W
🔆
Beam Angle: 120° degree glow
⚙️
Material: Die-casting aluminum with polyester powder coat finish
💧
Waterproof Grade: IP65
🔧
Maintenance: Easy installation and low maintenance
🌱
Energy Savings: No UV and IR radiations, emits low heat
🏅
Approvals: ETL / DLC / CETL / FCC / CE / RoHS approval
🛡️
Warranty: 3 or 5 years warranty
Product Parameters
Product Parameters Overview
Model NO. Power Luminous Flux LED Lamp NW / Size
CP01-XX01 40W >4,400LM LEDs 3030 2.3kg / 265x265x85mm
CP01-XX02 60W >6,600LM LEDs 3030 2.3kg / 265x265x85mm
CP01-XX03 80W >8,800LM LEDs 3030 2.4kg / 265x265x85mm
CP01-XX04 100W >11,000LM LEDs 3030 3.6kg / 314x314x95mm
CP01-XX05 120W >13,200LM LEDs 3030 3.7KG / 314x314x95mm
CP03-XX01 150W >16,500LM 3030 LEDs 6KG / 380x380x70mm
CP03-XX03 200W >26,000LM 3030 LEDs 6kg / 540x540x67mm
CP03-XX04 240W >31,200LM 3030 LEDs 6kg / 540x540x67mm
Beam Angle 120°
IP Grade IP65
CCT 2700K - 6500K
PF Rate >0.95
Light Efficient >130lm/W
CRI >80
Lifespan 50,000 Hours
Guarantee 3 or 5 Years
Details Images

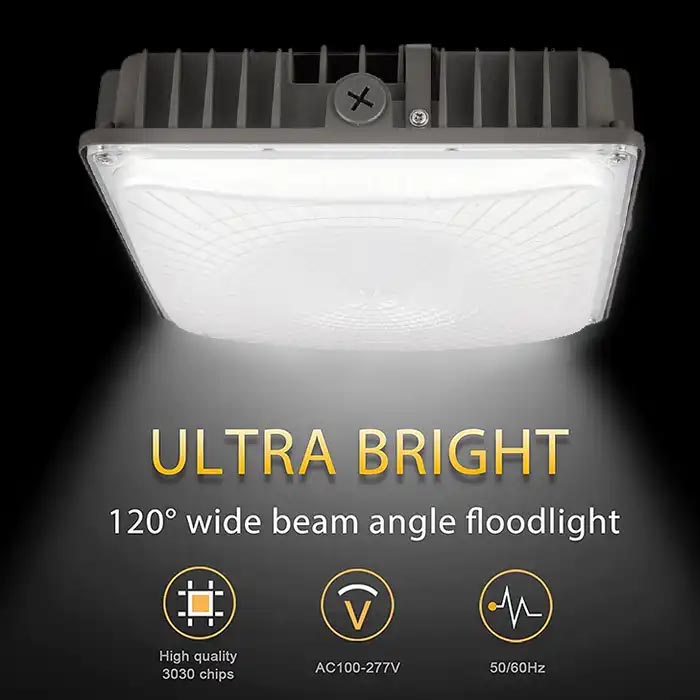

Detail View 1

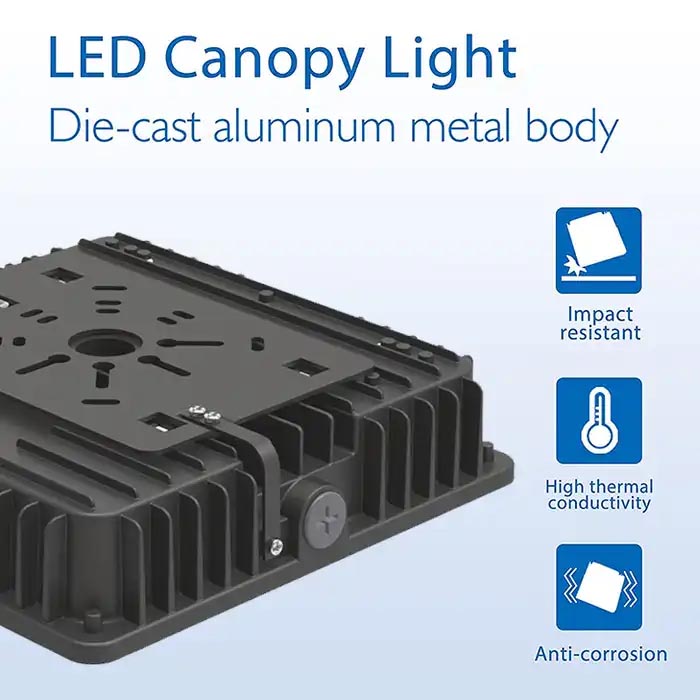

Detail View 2

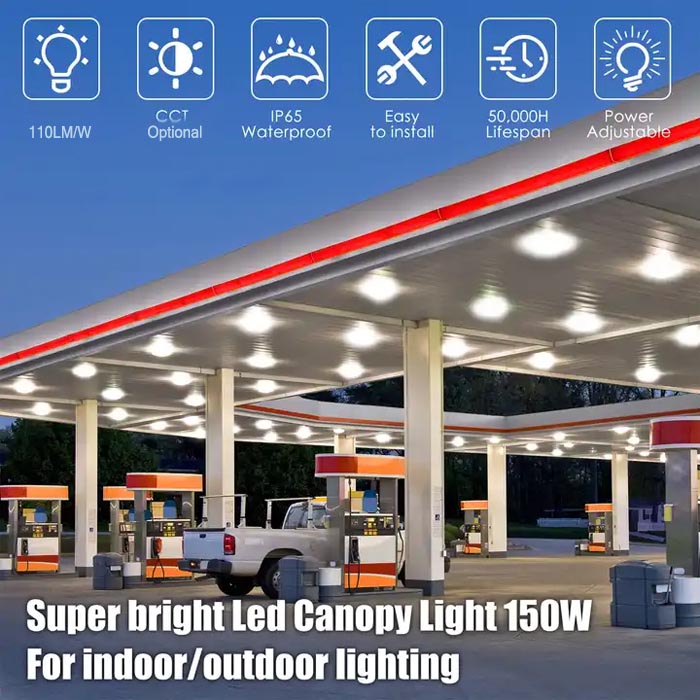

Detail View 3
Key Features Detail

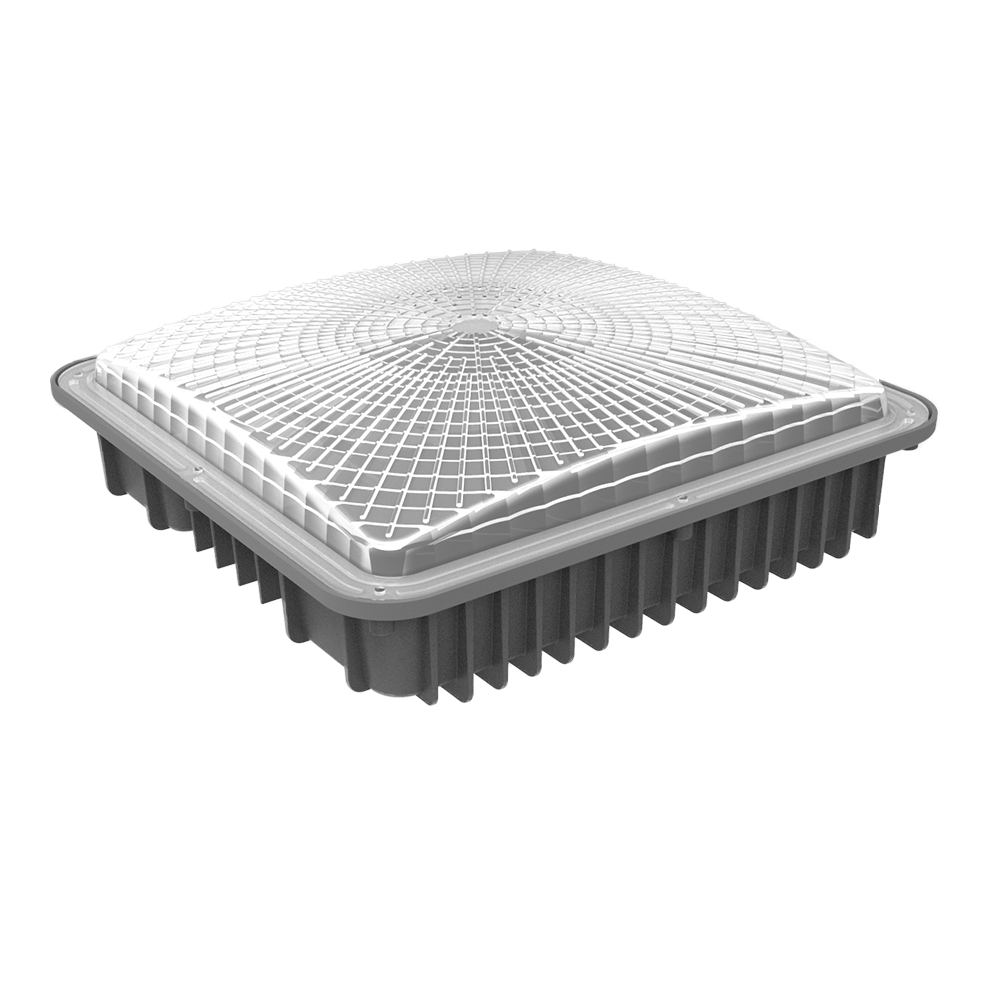

PC Lens Detail
PC Lens
DLC 4.3 light distribution design, with over 0.9 light transmittance, compliant with SGS/RoHS standards.

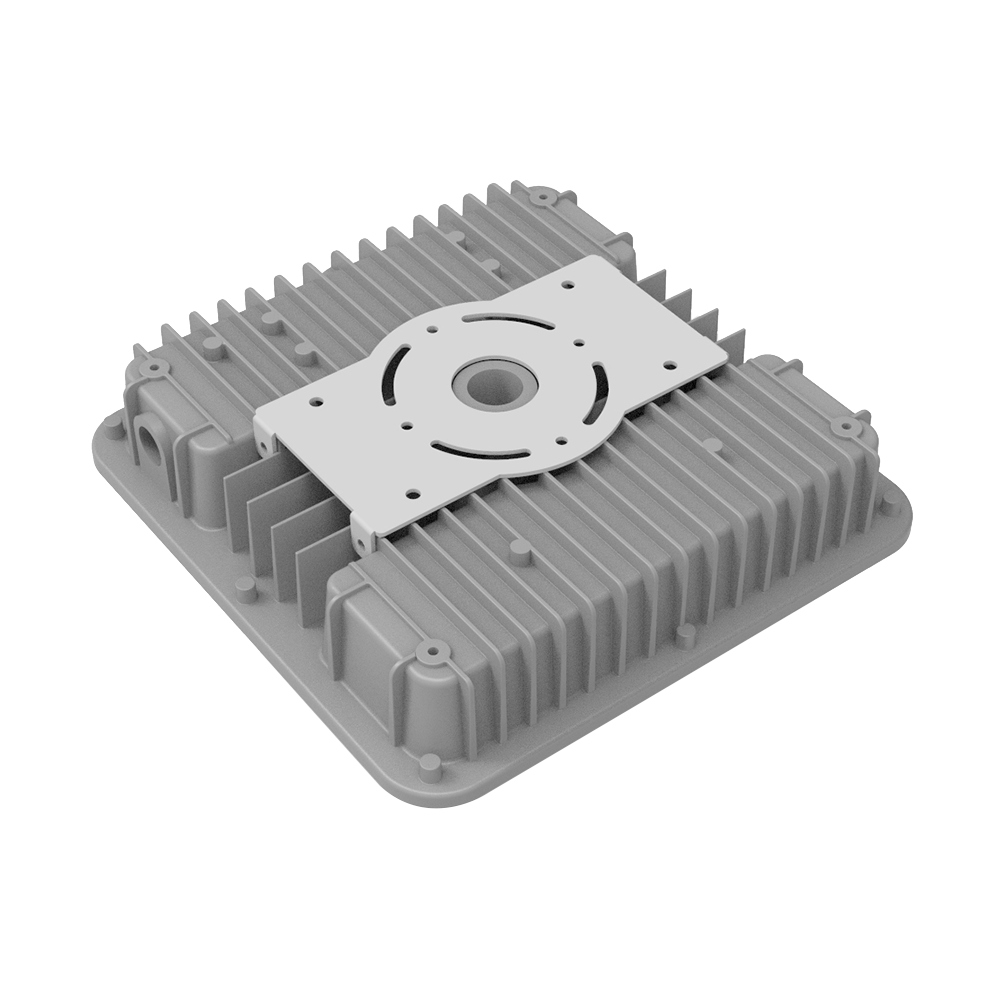

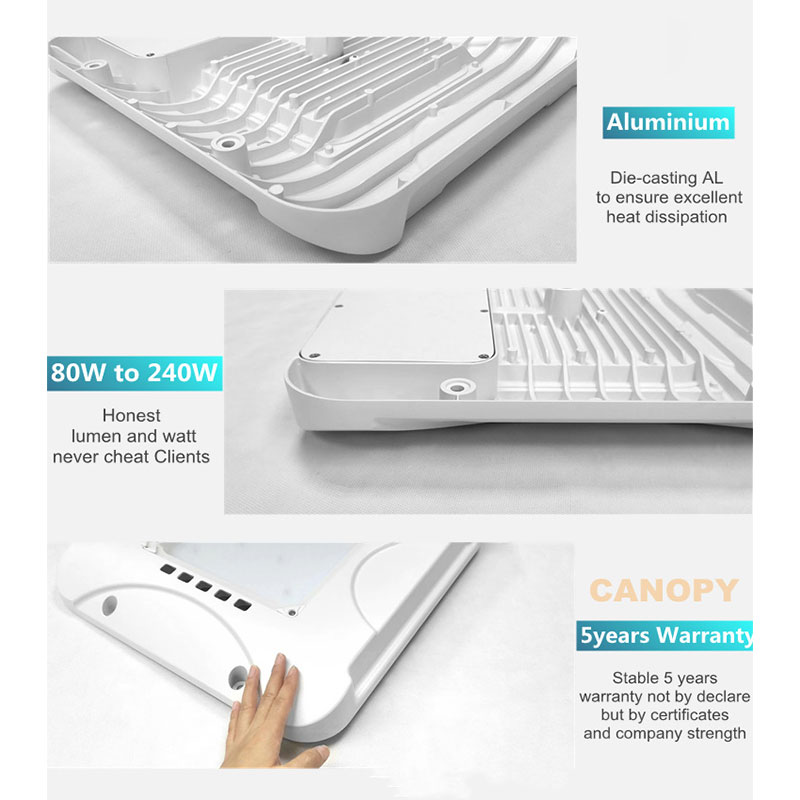

Heat Dissipation Detail
Efficient Heat Dissipation Aluminum
Rugged, increased heat sink size for efficient heat dissipation. Protects the core components of the lamp body and increases overall service life.
Efficiency LED Chips Detail
High Efficiency LED Chips
High light transmittance, delivering up to 110 lm/W for enhanced energy savings.

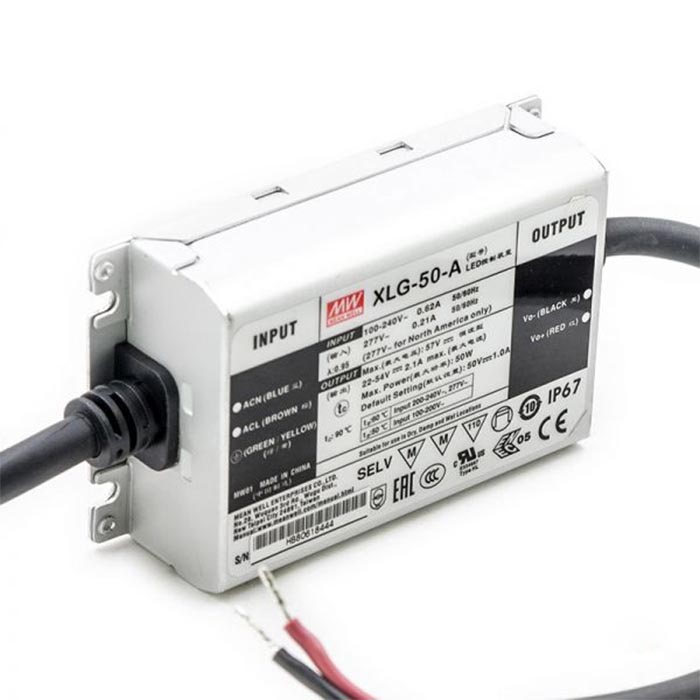

Power Drive Detail
Reliable Power Drive
Equipped with a high-quality power driver designed to stabilize operation and enhance the service life of the lamps.

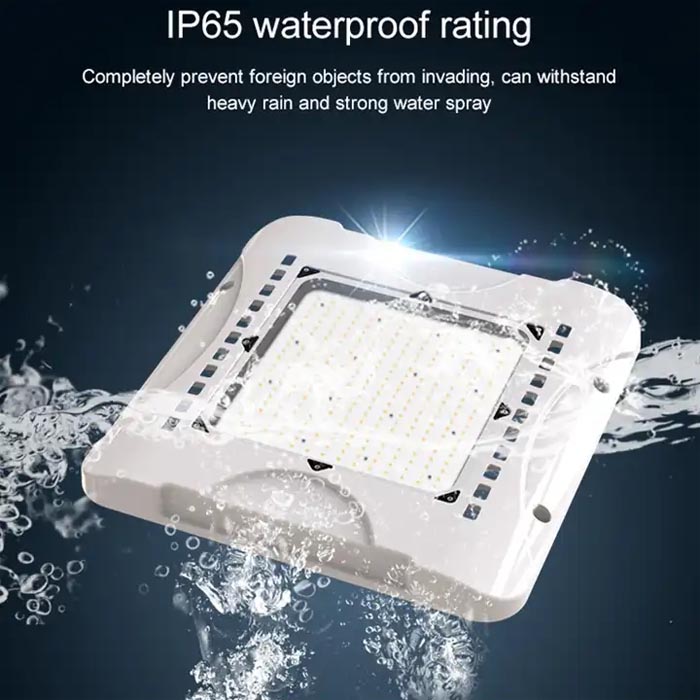

Weatherproof Detail
Weatherproof & Durable
With an IP65 waterproof grade rating, it ensures reliable illumination in any weather conditions.

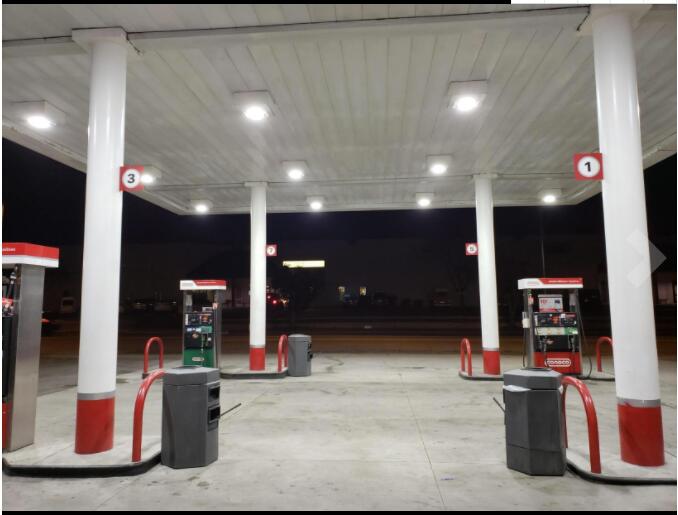

Application 1

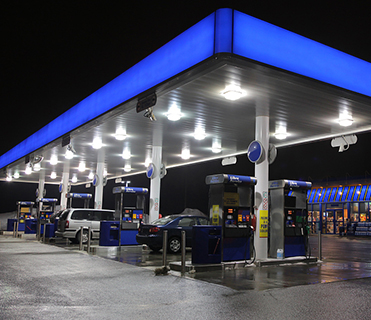

Application 2
Recommend Products
VR Showroom View
Certification Overview
Production Facility
Assembly Process
Testing Equipment
Aging Test Line
Why Choose Us
Strong Capabilities
Strict Inspection Standards
Packaging and Logistics
Packaging Setup and Transportation
Frequently Asked Questions
Q1 Are you a factory or a trading company?
We are a professional LED Lighting products factory!
Q2 Can you support OEM or ODM services?
Yes, we have a strong development team. The products can be custom-made according to your requests.
Q3 Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
Q4 What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your complete satisfaction with our products. Whether covered by warranty or not, it is our company culture to address and resolve all customer issues to everyone's satisfaction.
Q5 Do you guarantee safe and secure delivery of products?
Yes, we always use high-quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature-sensitive items. Specialist packaging and non-standard packing requirements may incur additional charges.
Q6 How are shipping fees calculated?
The shipping cost depends on the method you choose to receive the goods. Express is normally the fastest but also the most expensive option. Sea freight is the best solution for large orders. We can only provide exact freight rates once we know the details of your order size, weight, and delivery method.
