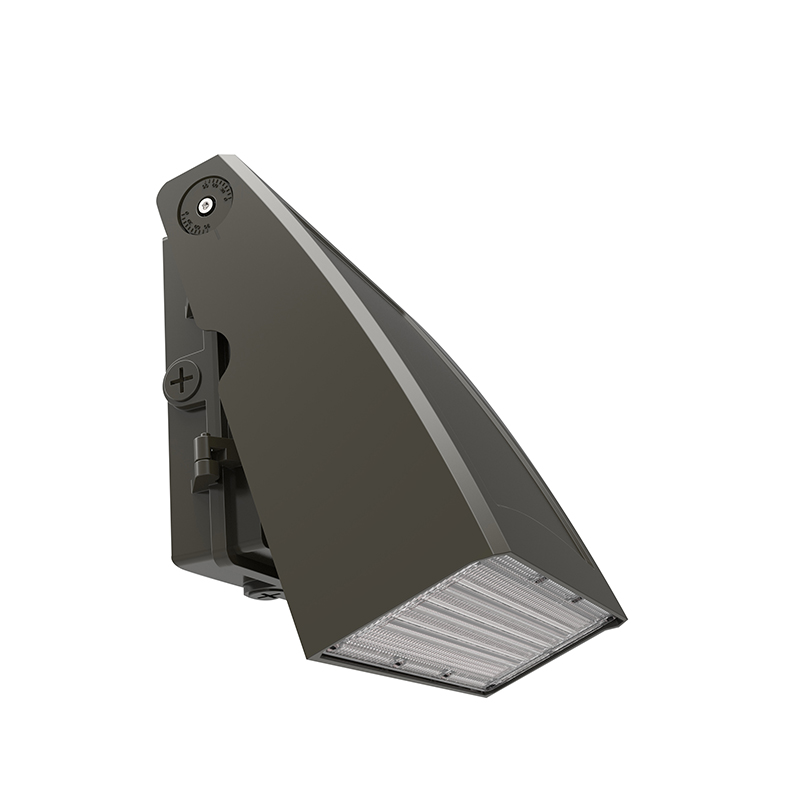

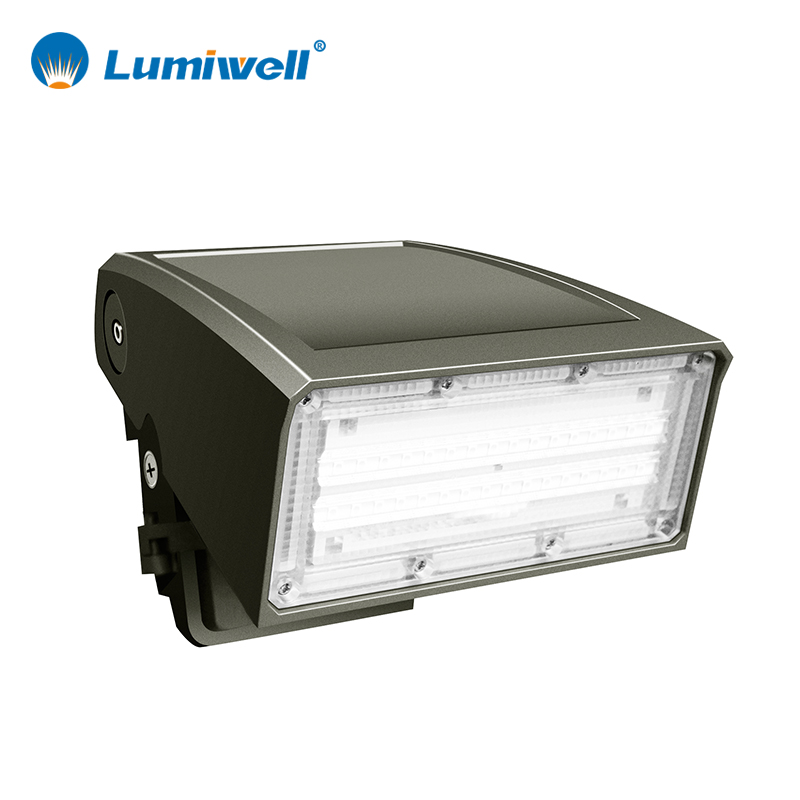

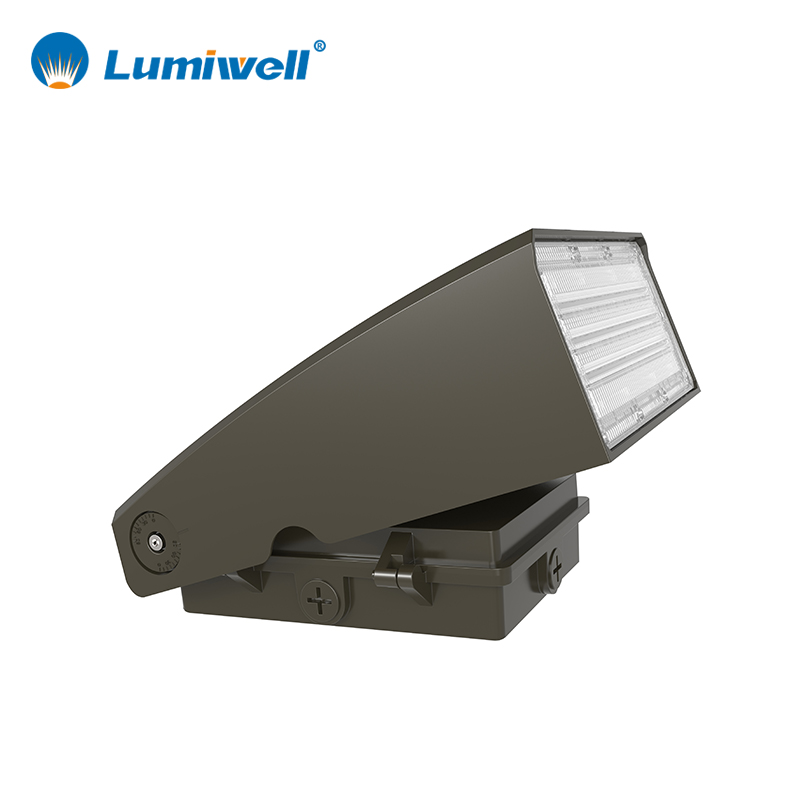

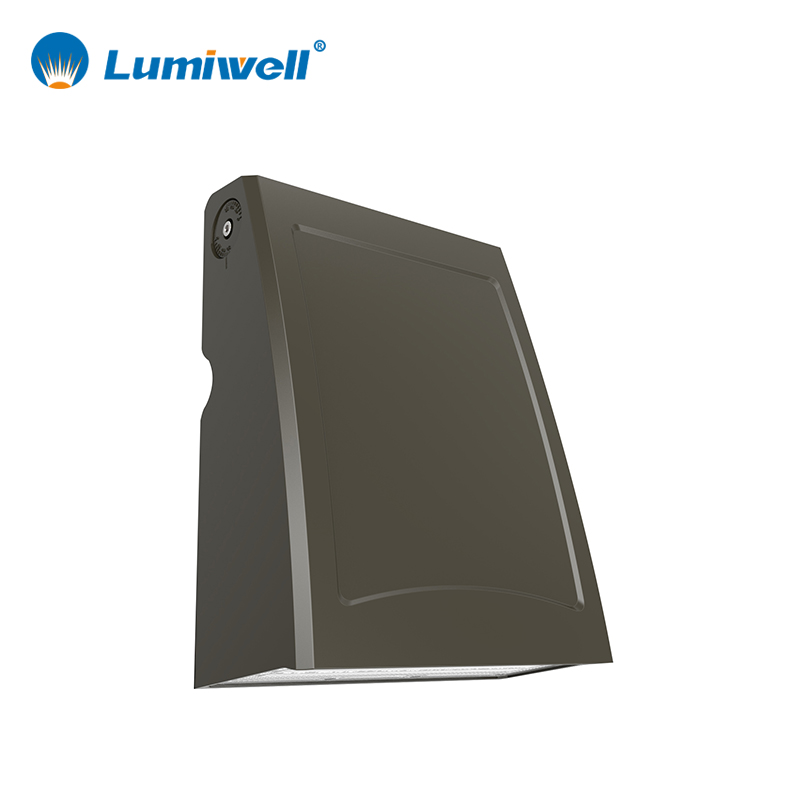

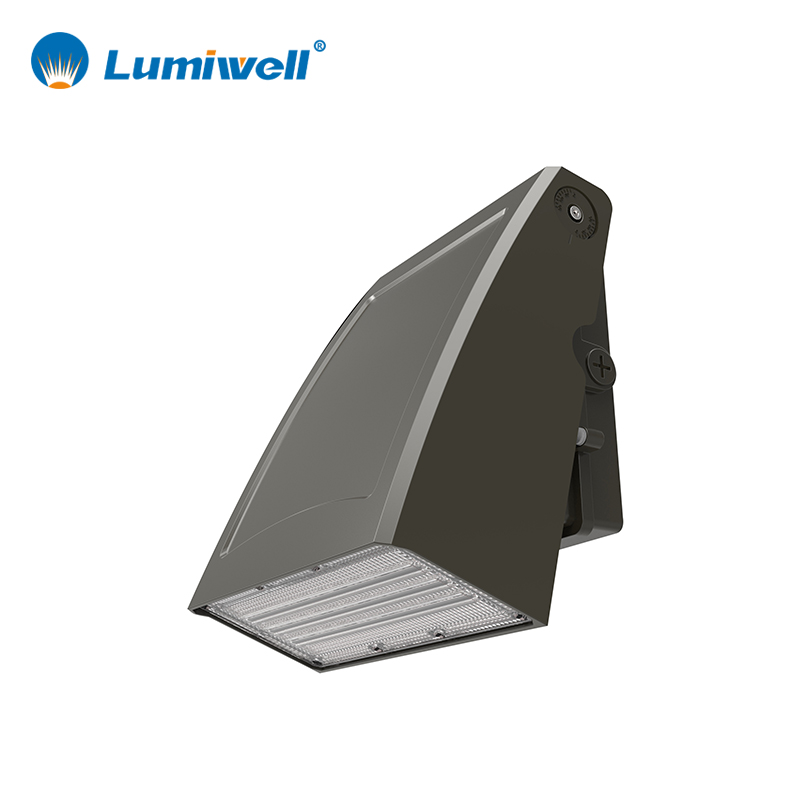

20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell
1 / 5
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell

20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall Pack Light with Photocell

Send Inquiry

Product Description

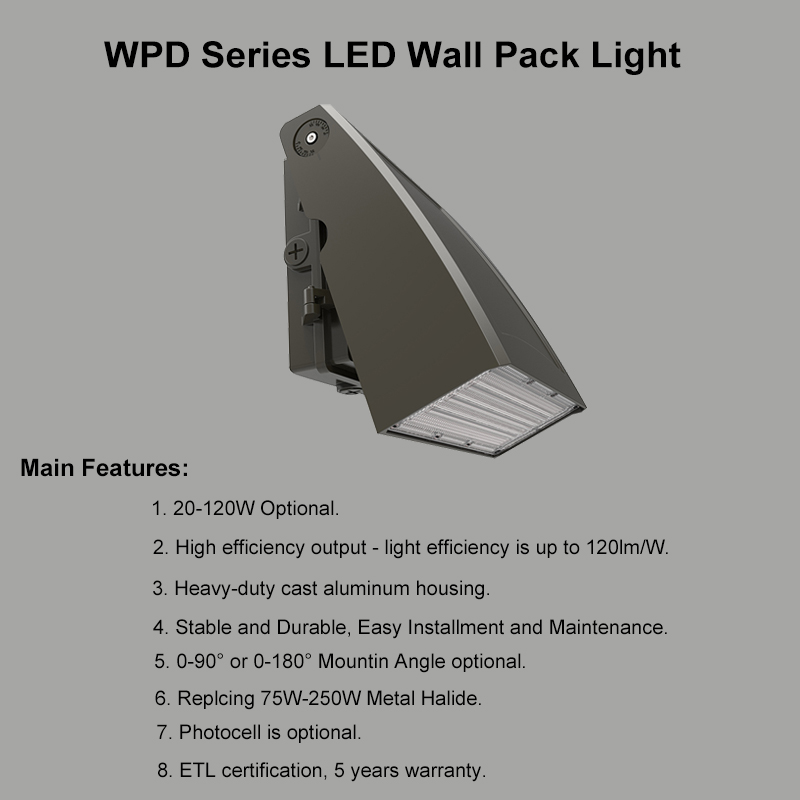

20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall pack Light with Photocell
20W 30W 40W 60W 80W 100W 120W ETL 5 Years Warranty Outdoor Rotatable Full Cut-off LED Wall pack Light with Photocell
Product Description
Main Features
  • 20-120W Optional.
  • Dusk-to-Dawn photocell available - Auto turn on at dusk and off at dawn.
  • Unique private slim shape design - Uniform lighting distribution via PC lens.
  • Easy and fast installation - Direct mounting on wall or with J-Box.
  • High efficiency output - light efficiency is up to 120LPW.
  • Waterproof IP65 rating - suitable for all kinds of weather.
  • Good energy saving - save 80% electricity cost compared to traditional lamp.
  • 0-90° or 0-180° Mounting Angle optional.
  • 5 Years Warranty for whole fixture and power supply.
Specifications
Model No. Power Lumens Voltage Size Beam Angle Material CCT CRI Lifespan Certificate Warranty
LW-WPD20W 20W 2400lm AC100V-277V 8.1''*L6.5''*H3.9'' 120 Degree Aluminum + Tempered Glass 3000K/4000K/5000K/5700K >70Ra 50000hrs ETL, cETL 5 years
LW-WPD30W 30W 3600lm
LW-WPD40W 40W 4800lm
LW-WPD60W 60W 7200lm 11.1''*8.5''*4.3''
LW-WPD80W 80W 9600lm
LW-WPD100W 100W 12000lm 13''*10.5''*4.9''
LW-WPD120W 120W 14400lm

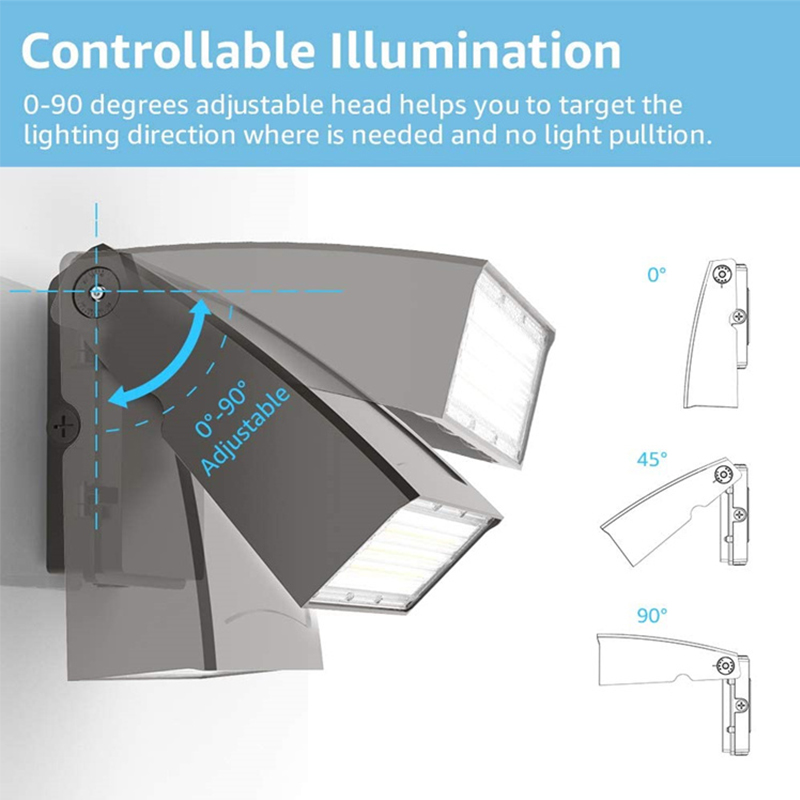

Rotatable Full Cut-off LED Wall Pack Light 1

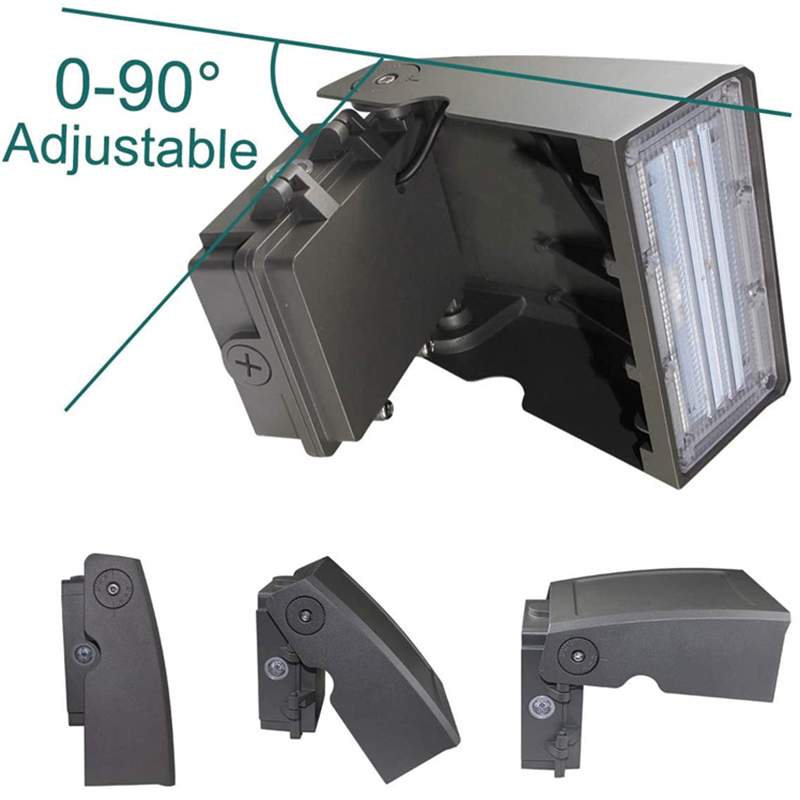

Rotatable Full Cut-off LED Wall Pack Light 2

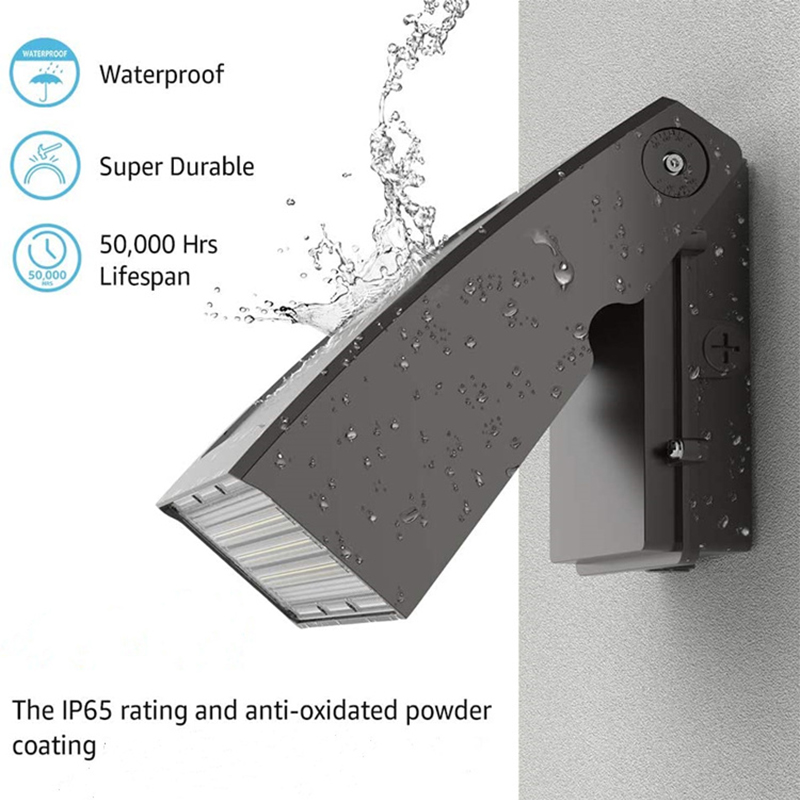

Rotatable Full Cut-off LED Wall Pack Light 3

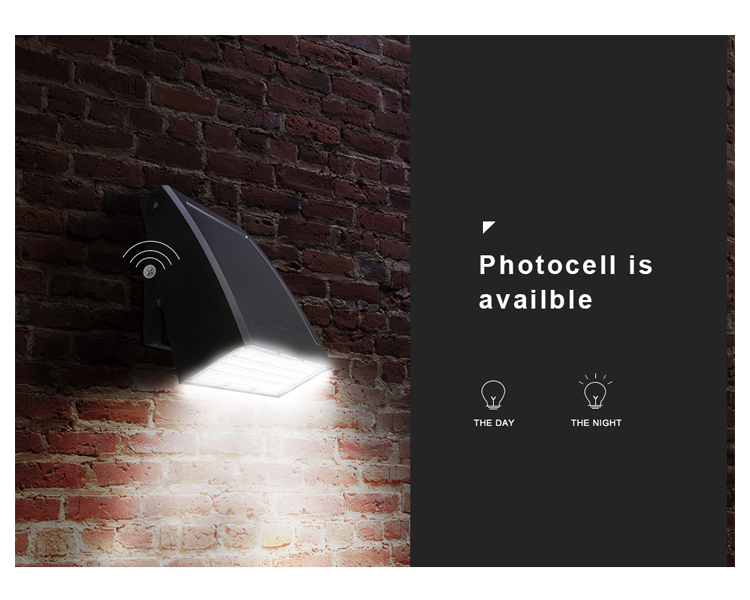

Rotatable Full Cut-off LED Wall Pack Light Outline
Dimensions
20W, 30W, 40W

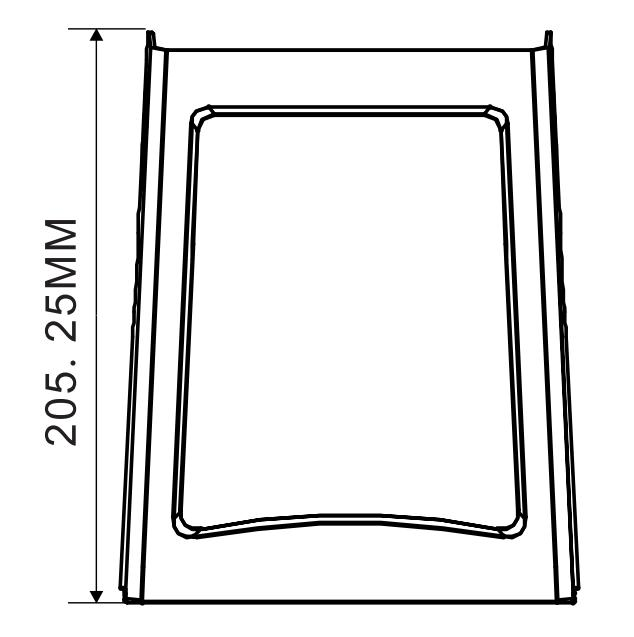

Dimensions 20W 30W 40W Front

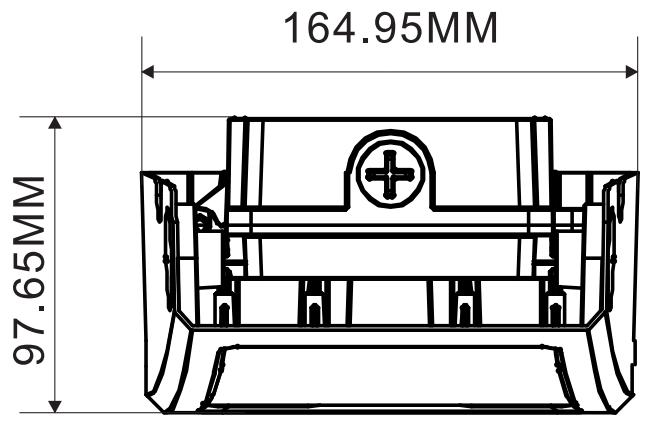

Dimensions 20W 30W 40W Side
60W, 80W

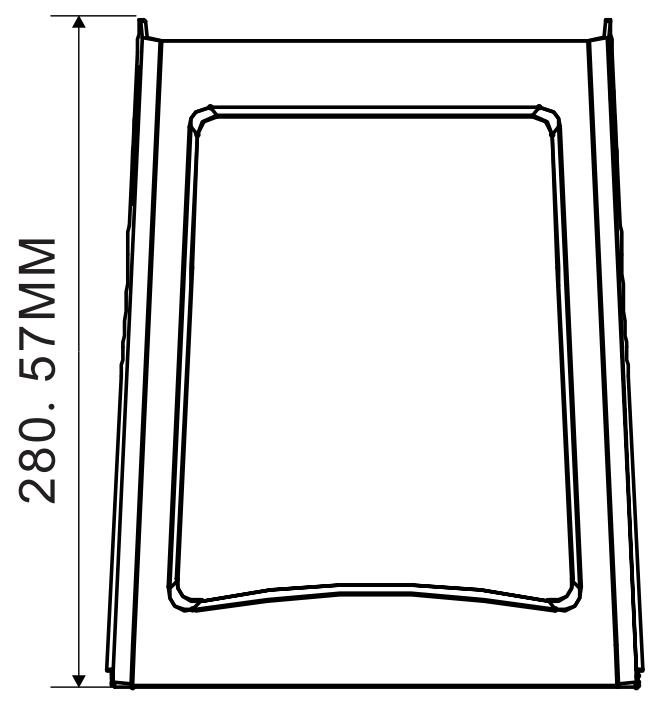

Dimensions 60W 80W Front

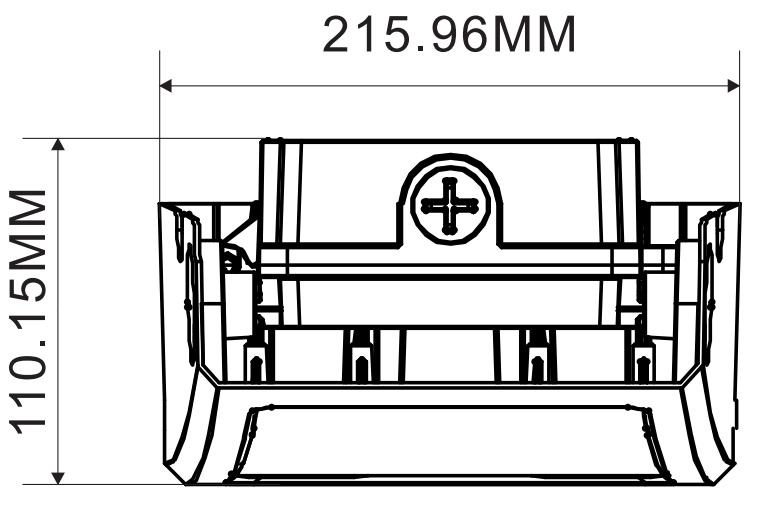

Dimensions 60W 80W Side
100W, 120W

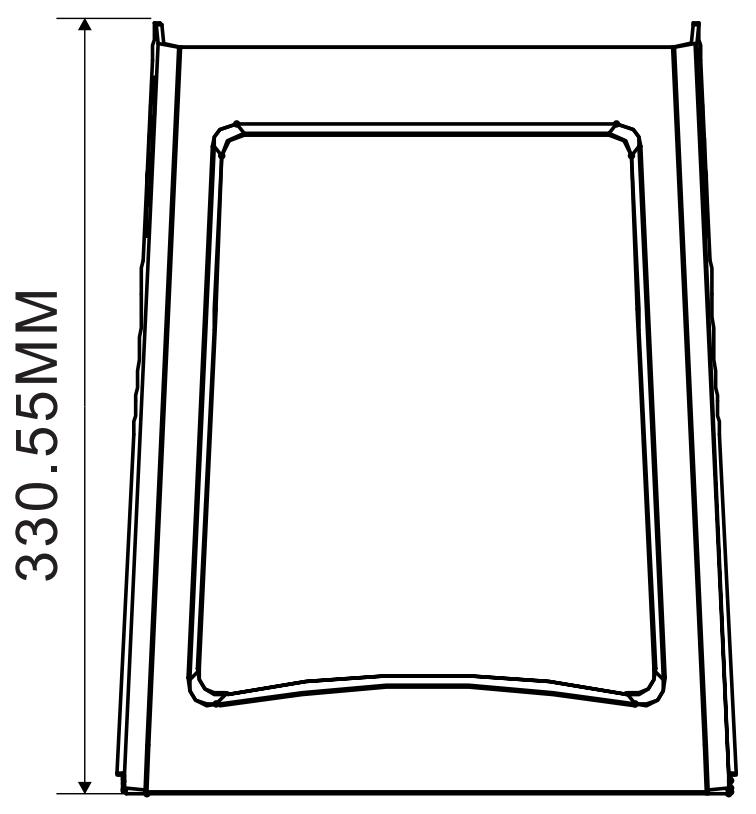

Dimensions 100W 120W Front

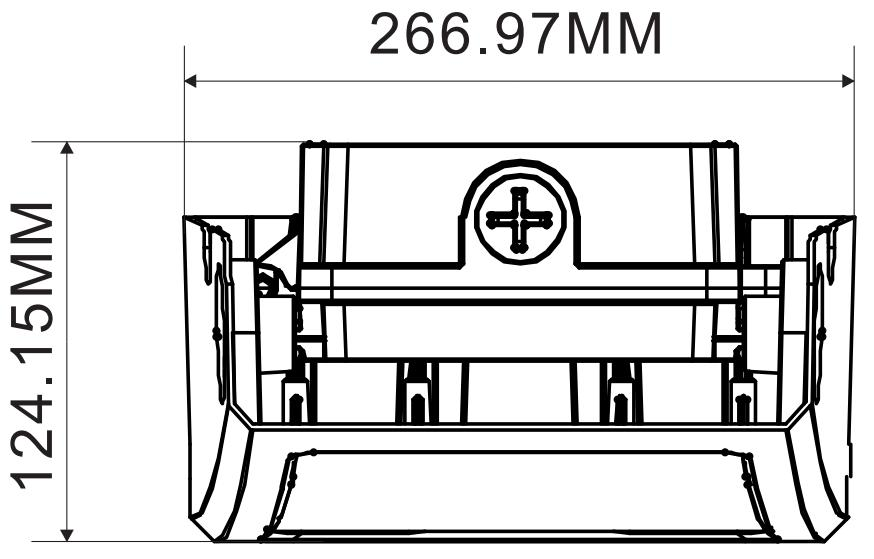

Dimensions 100W 120W Side

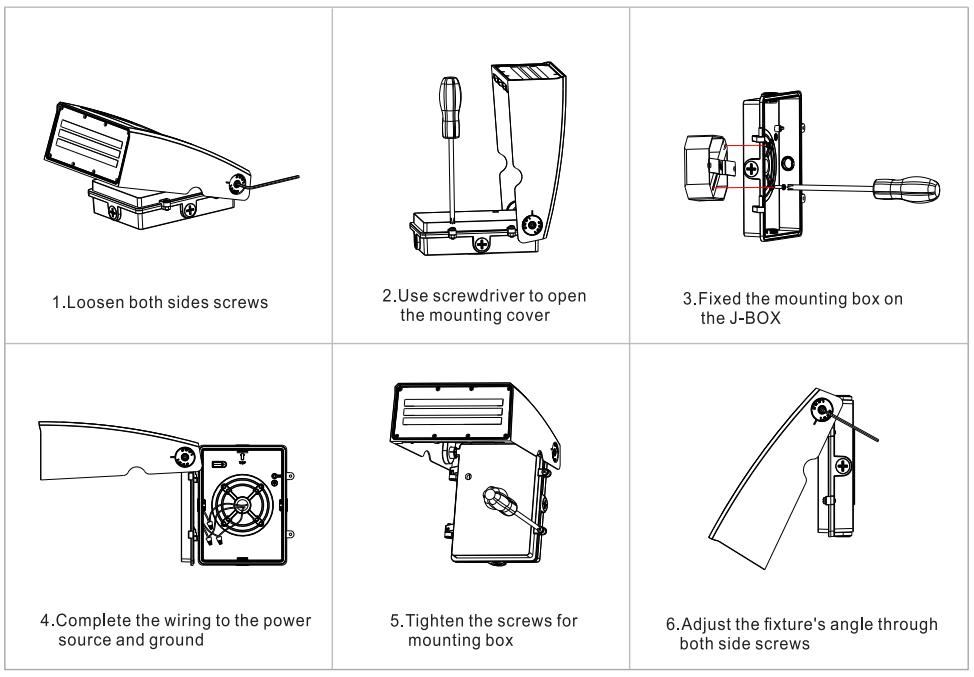

Installation Process
LED Wall Pack Installation Steps
Applications

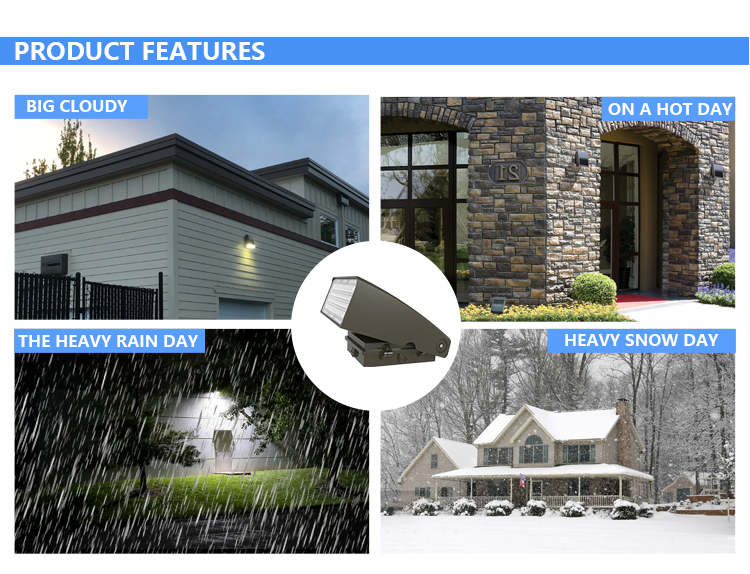

Outdoor LED Wall Pack Light Application View

Widely used at pathway, hallway, perimeter, patio, entrance, stairway, house, garden, garage, yard, warehouse, factory, store, street, porch.

LED Wall Pack Application Scenarios
More Products
Related Lighting Products Portfolio
Quality Standard Verification Image
Factory Product Testing Inspection Image
Frequently Asked Questions
What power options are available for this LED Wall Pack Light?
This outdoor rotatable LED wall pack light is available in multiple optional wattages to fit various project sizes: 20W, 30W, 40W, 60W, 80W, 100W, and 120W.
How does the photocell sensor benefit the operation of the fixture?
The integrated dusk-to-dawn photocell sensor automatically turns the fixture on at dusk and off at dawn, which ensures optimum convenience, enhances property security, and drastically cuts down energy wastage.
Is this light fixture suitable for harsh outdoor weather?
Yes. Featuring a robust waterproof IP65 rating and constructed with high-grade aluminum and tempered glass, this fixture is engineered to reliably withstand all kinds of wet, cold, or dusty outdoor environments.
What is the lifespan and warranty guarantee?
This light offers a superior operational lifespan of 50,000 hours. The entire light fixture, including its high-efficiency internal power supply, is backed by our comprehensive 5-year replacement warranty.
What are the adjustable mounting options for this light?
This fixture features a unique rotatable design allowing 0-90° or 0-180° customizable mounting angles. It supports direct surface wall mounting or matching with standard J-Boxes for easy and fast installations.
What color temperatures (CCT) can I select?
You can choose from four distinct color temperatures: Warm White (3000K), Natural White (4000K), Daylight White (5000K), and Cool daylight (5700K) to perfectly complement the visual requirements of your area.
