This link is the black shell engineering dual lamp P50 model specification. The brightness is superior to the single lamp model. Each lamp features 0.5W output with a 5*5CM spacing. Enjoy a 3-year warranty for breakpoint renewal and a 5-year warranty for the 512IC.

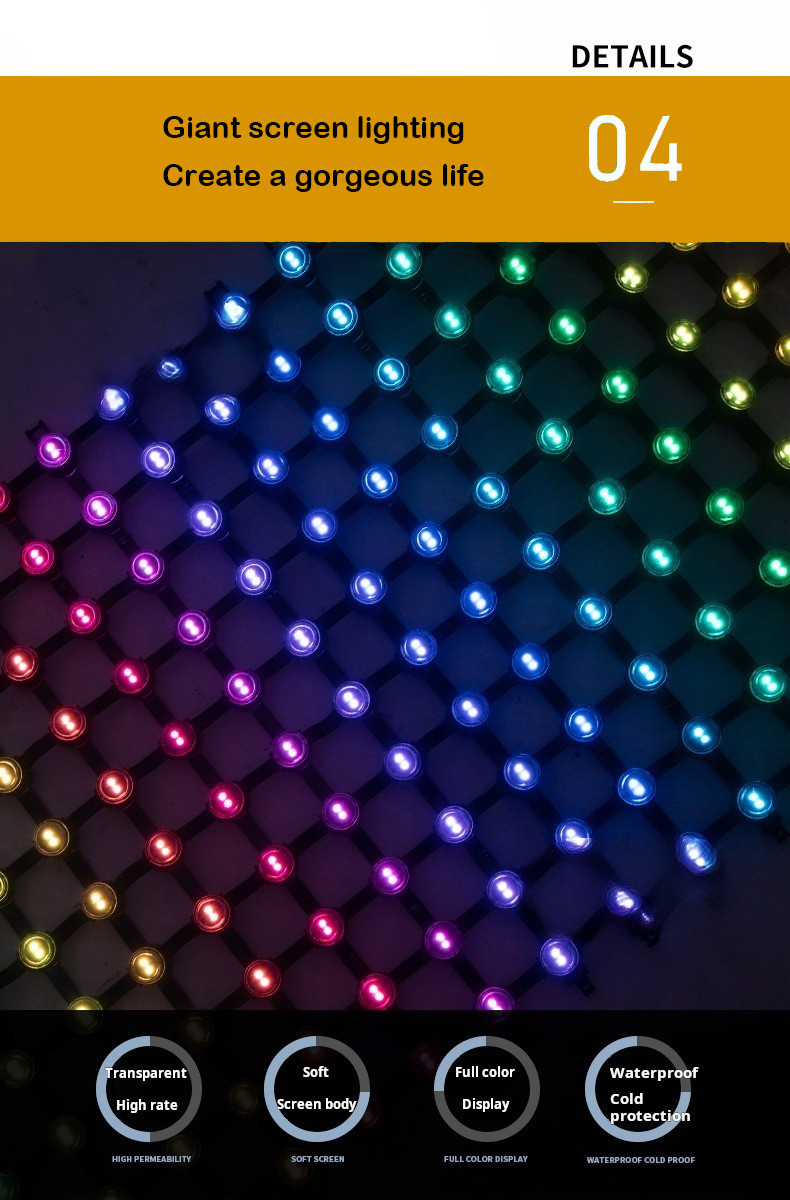

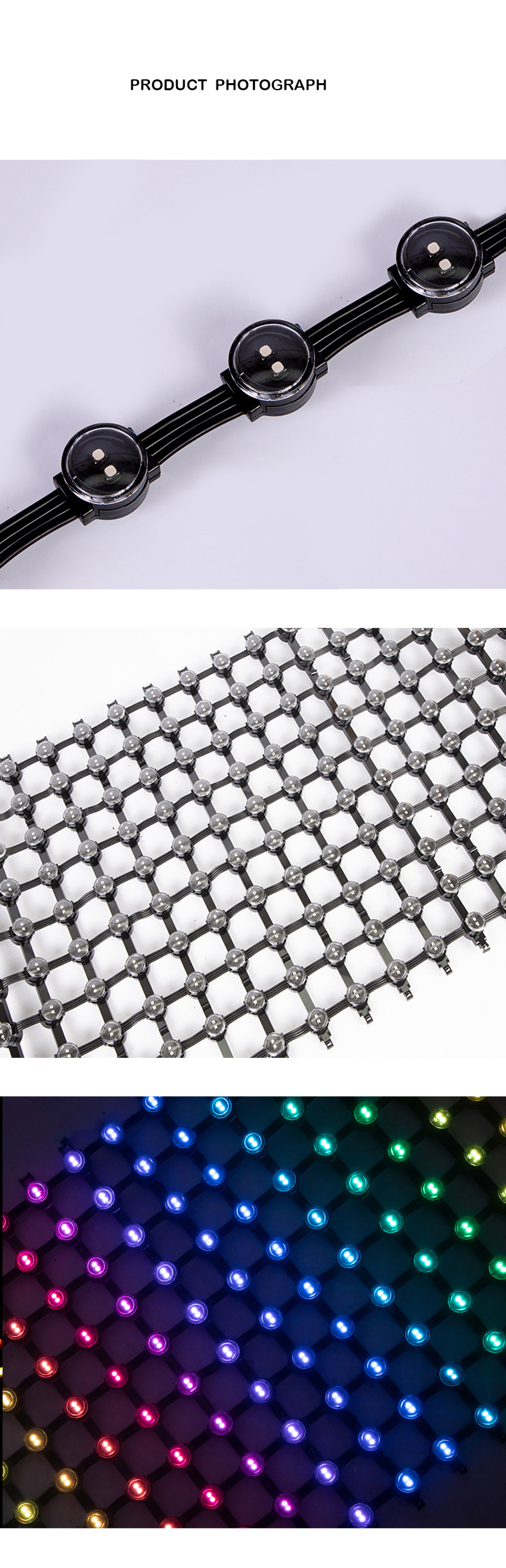

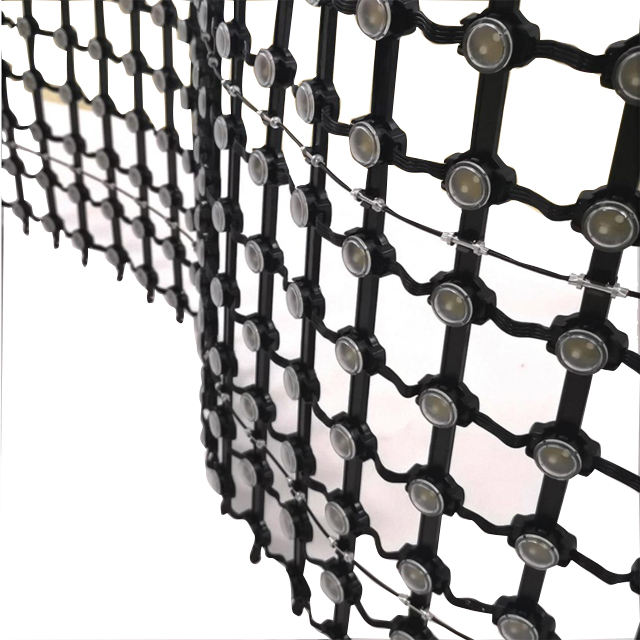

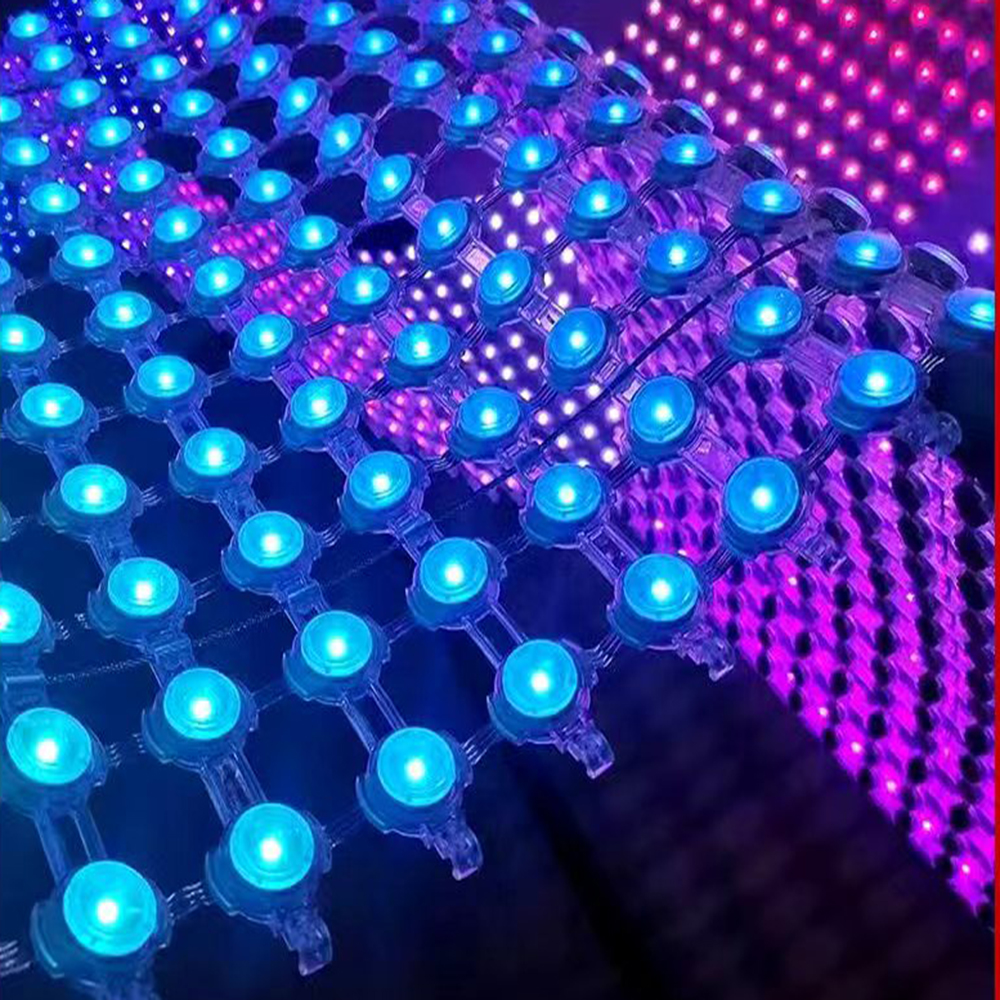

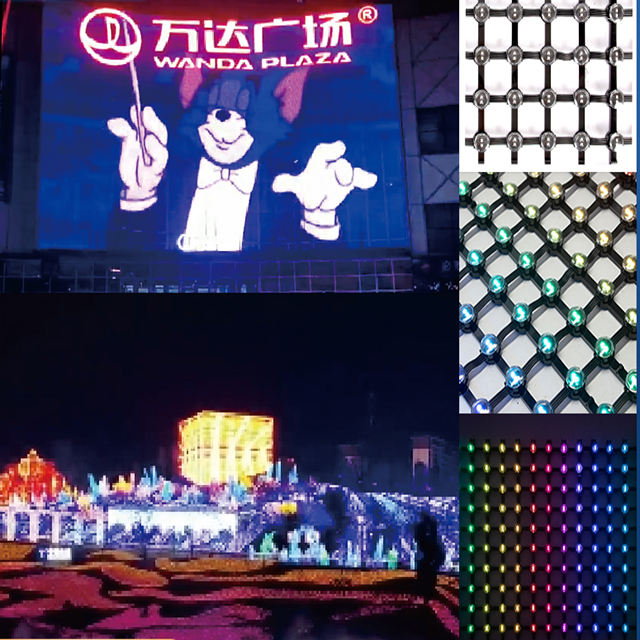

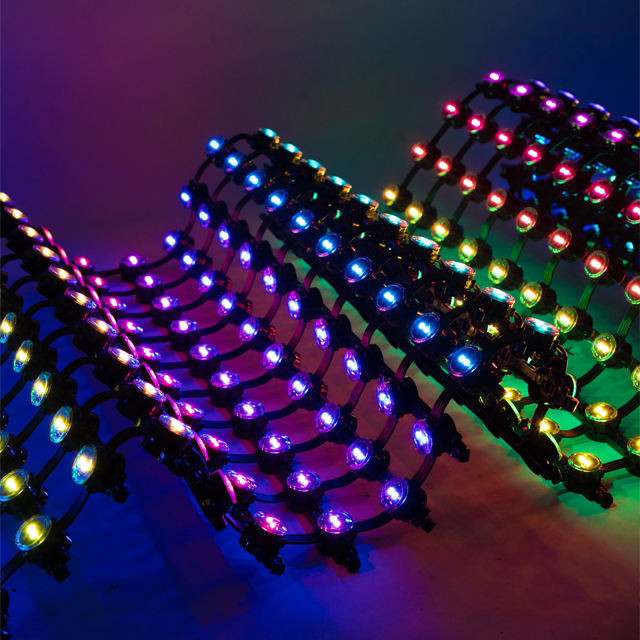

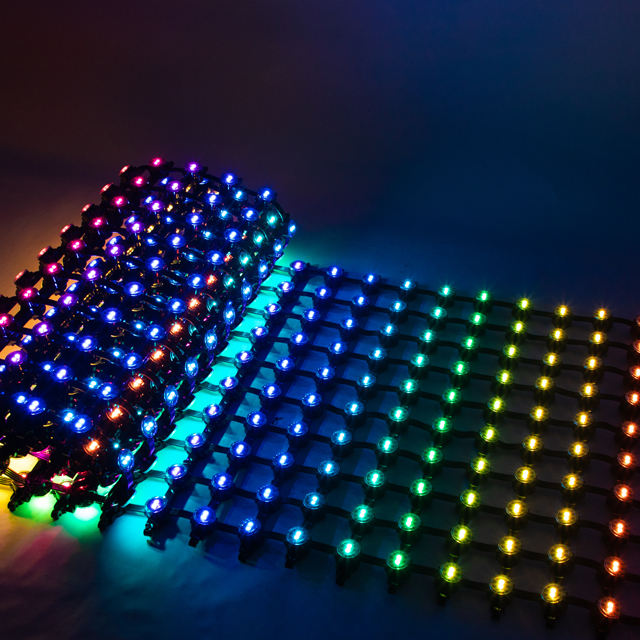

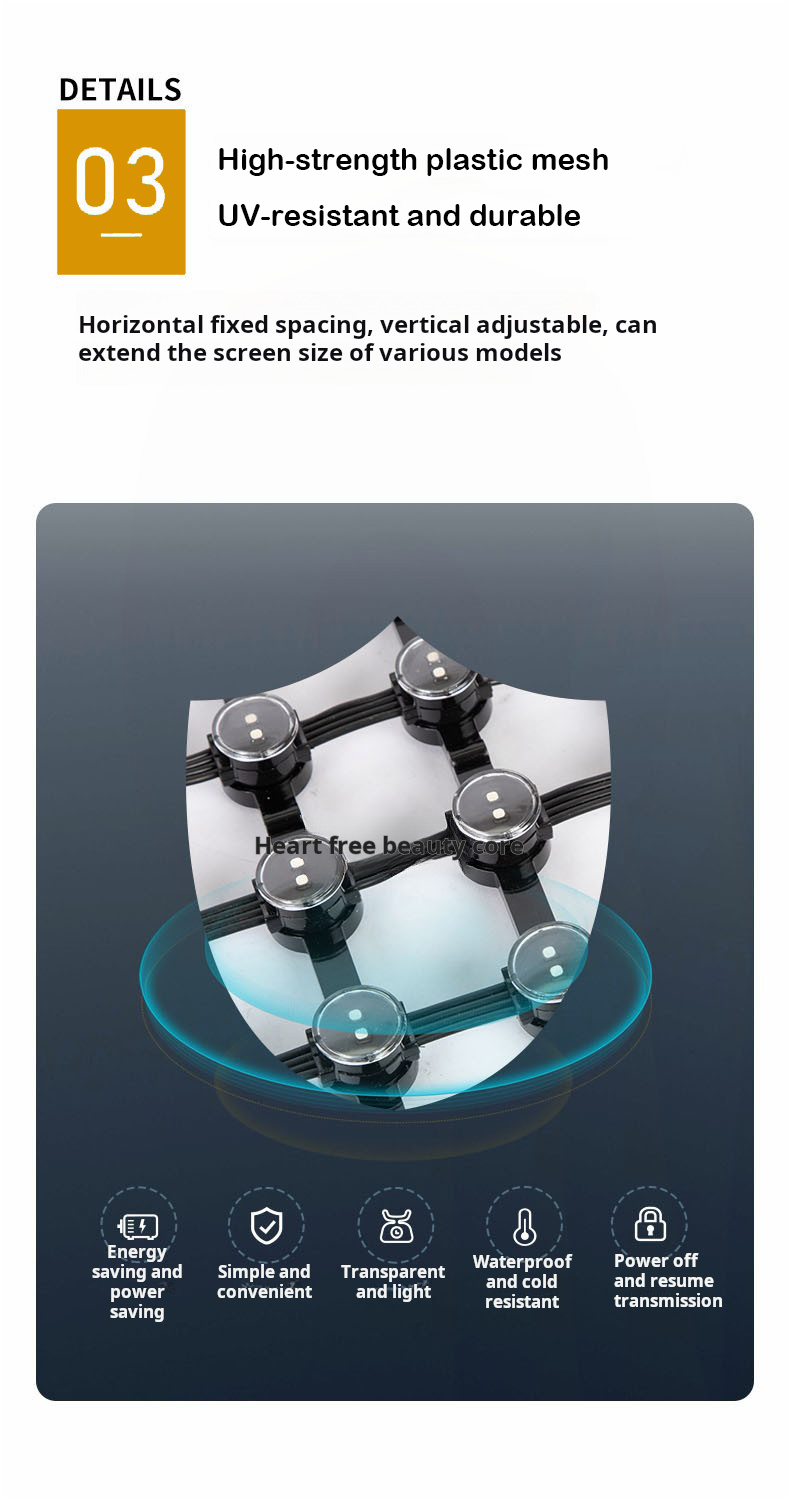

The LED grid screen consists of pixel light points connected into a flexible network structure, offering a lightweight, soft, transparent, foldable, and ventilated profile that makes installation exceptionally straightforward. Built using LED point light sources, PC Card strips, 4P lines, steel wires, and other components, this display module functions as a high-level creative lighting and video system. It satisfies both decorative illumination needs and the demands of commercial advertising, displaying text, images, and videos. As an eco-friendly, energy-saving product optimized for large-scale viewing, it offers unmatched cost-efficiency for expansive installations and custom creative displays compared to traditional electronic displays.

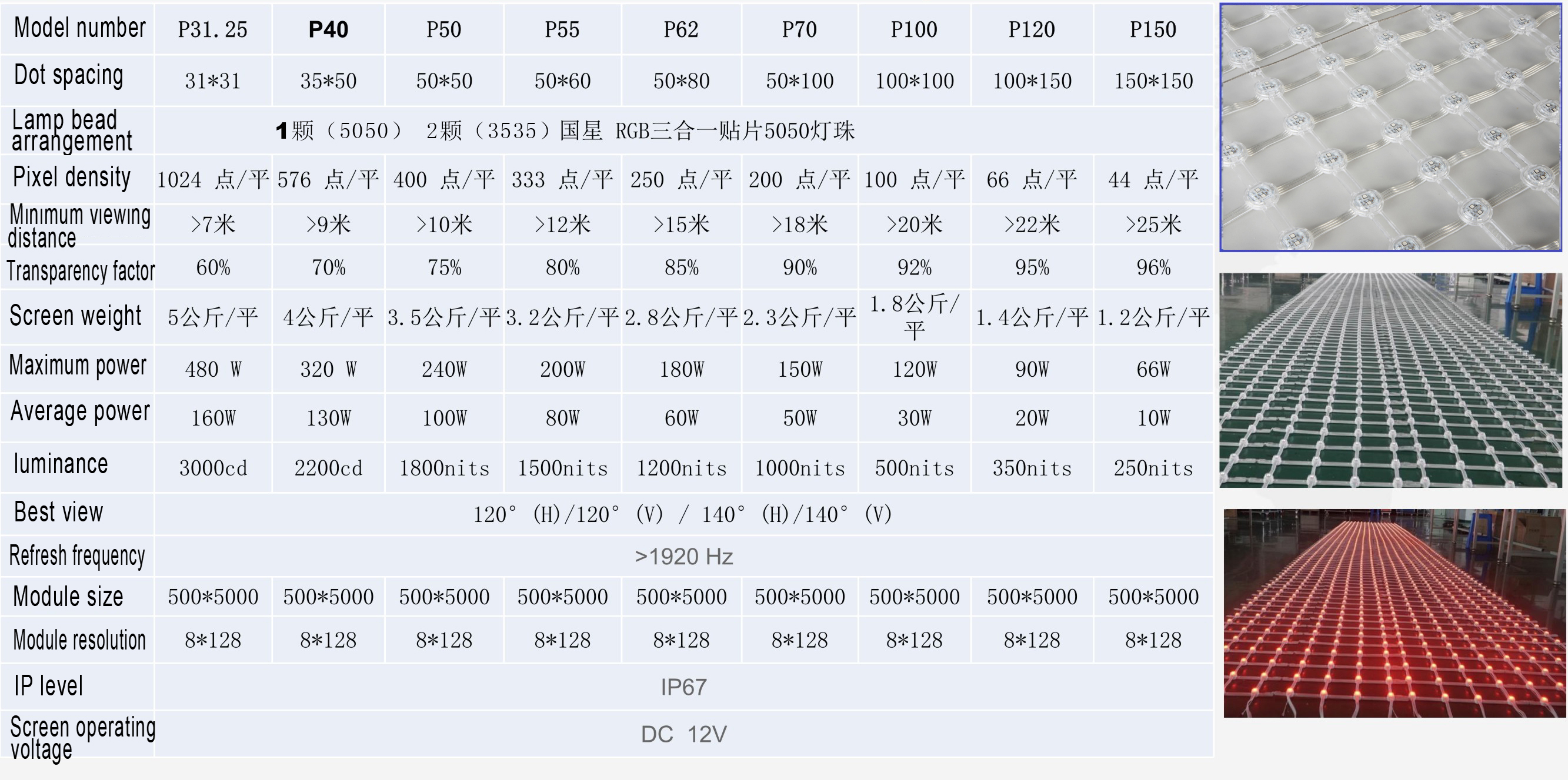

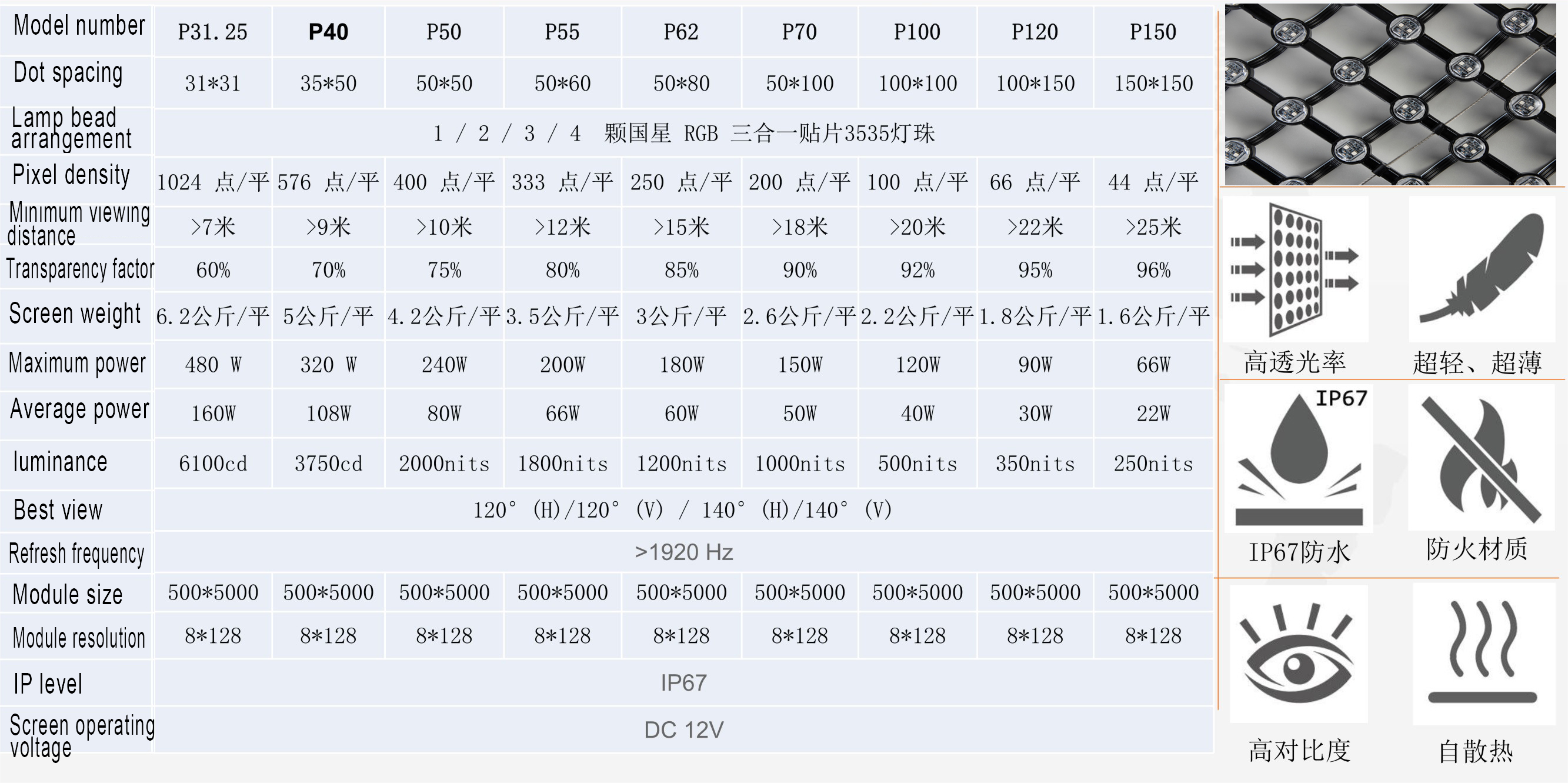

With pixel pitches ranging from P30 to P200mm and utilizing flexible unit module buckles, it easily scales to fit display areas from tens of square meters up to tens of thousands of square meters. This versatility meets the screen requirements for business atmospheres, artistic landscaping, hotels, entertainment venues, scenic locations, commercial advertising, and building facades.

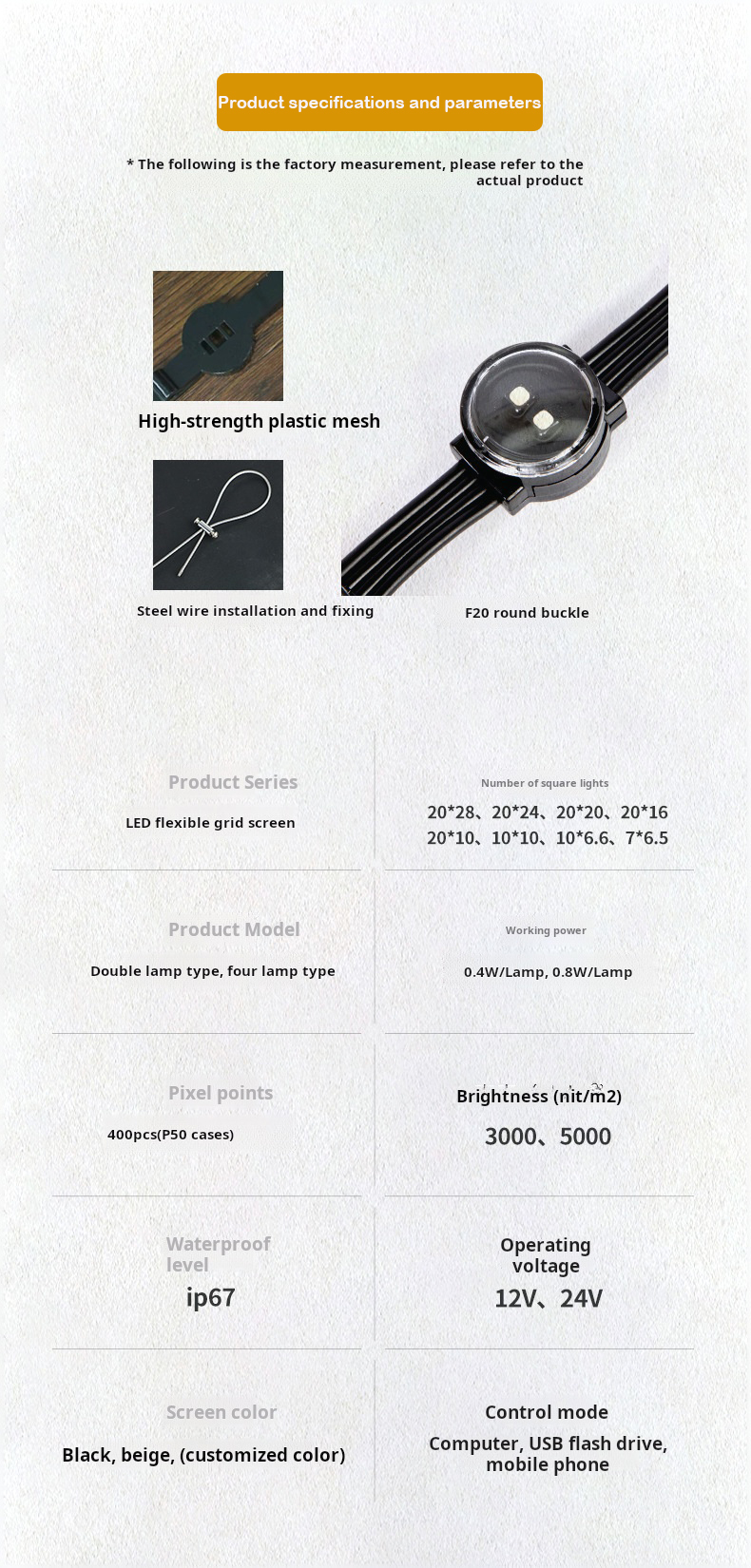

| LED Grid Screen Parameter Table (P50) | |||
|---|---|---|---|
| Model Number | Taiwan wafer | Pixel Pitch | P41 (5×5CM Center distance) |
| LED Specification | RGB/TTL | Bead Quantity | Total 400 pcs/square |
| Permeability | 80% | Pixel Density | ≥400 pcs/square |
| Pixel Combination | 2R2G2B SMD3535 | Luminance | 3500 nits |
| Gray Level | 65536 Grade | Refresh Rate | ≥1920 Hz |
| Maximum Power | 200W/square | Control Mode | SD card, computer, mobile remote |
| IC Mode | Breakpoint continuation | Viewing Angle | 120° |
| Input Voltage | AC-220V | Operating Voltage | DC12V |
| Ambient Temperature | -20℃ ~ 50℃ | Ambient Humidity | 10% ~ 99% |
| Life Span | ≥100000h | Waterproof Class | IP68 |
| Pixel Arrangement | SD card, computer, mobile remote | Weight | ≥3kg/square |

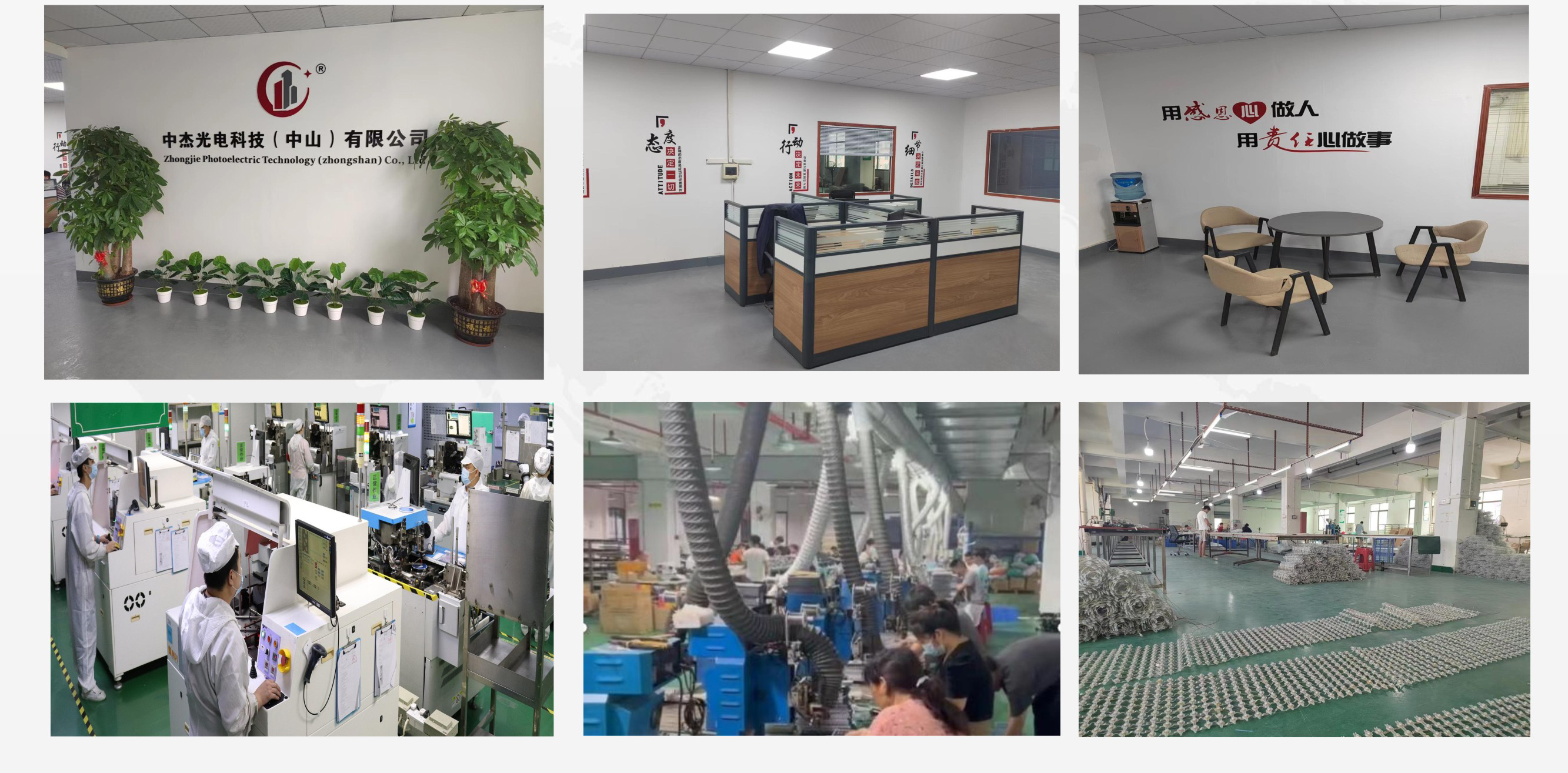

We are a leading provider of outdoor LED grid screen solutions, delivering economical, high-performance display systems. Known for excellent imaging quality, ultra-thin designs, simple installation, and low-cost maintenance, our products are widely recognized across international markets. As a dedicated source factory specializing in grid screen production, we offer a comprehensive variety of products, fast delivery times, exceptional quality, competitive pricing, and industry-leading technology. Additionally, we have independently developed an intelligent control system optimized for grid screen applications that requires no complex debugging, making it simple for anyone to operate. We provide a complete one-stop service from design and construction to technical guidance.

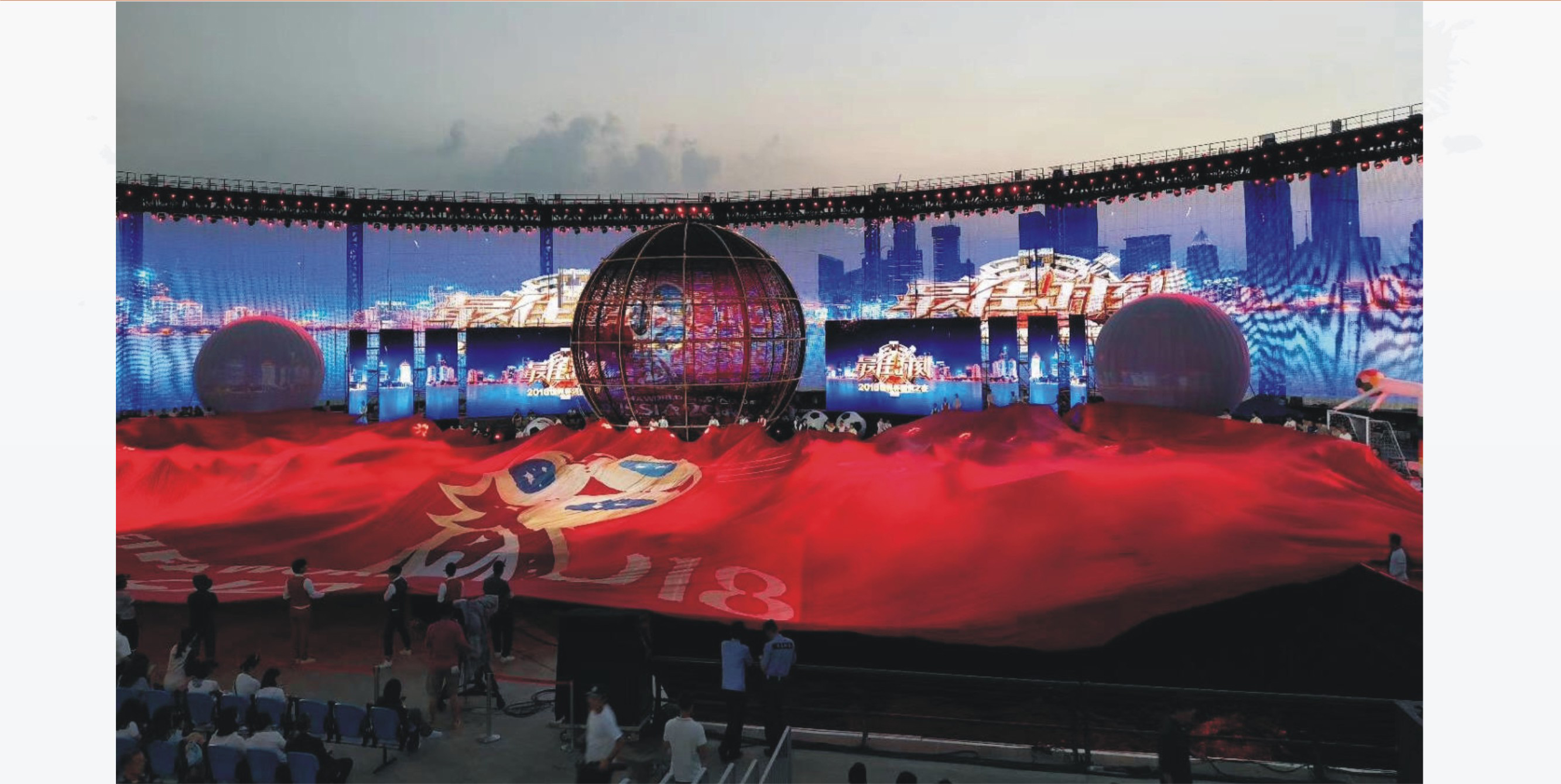

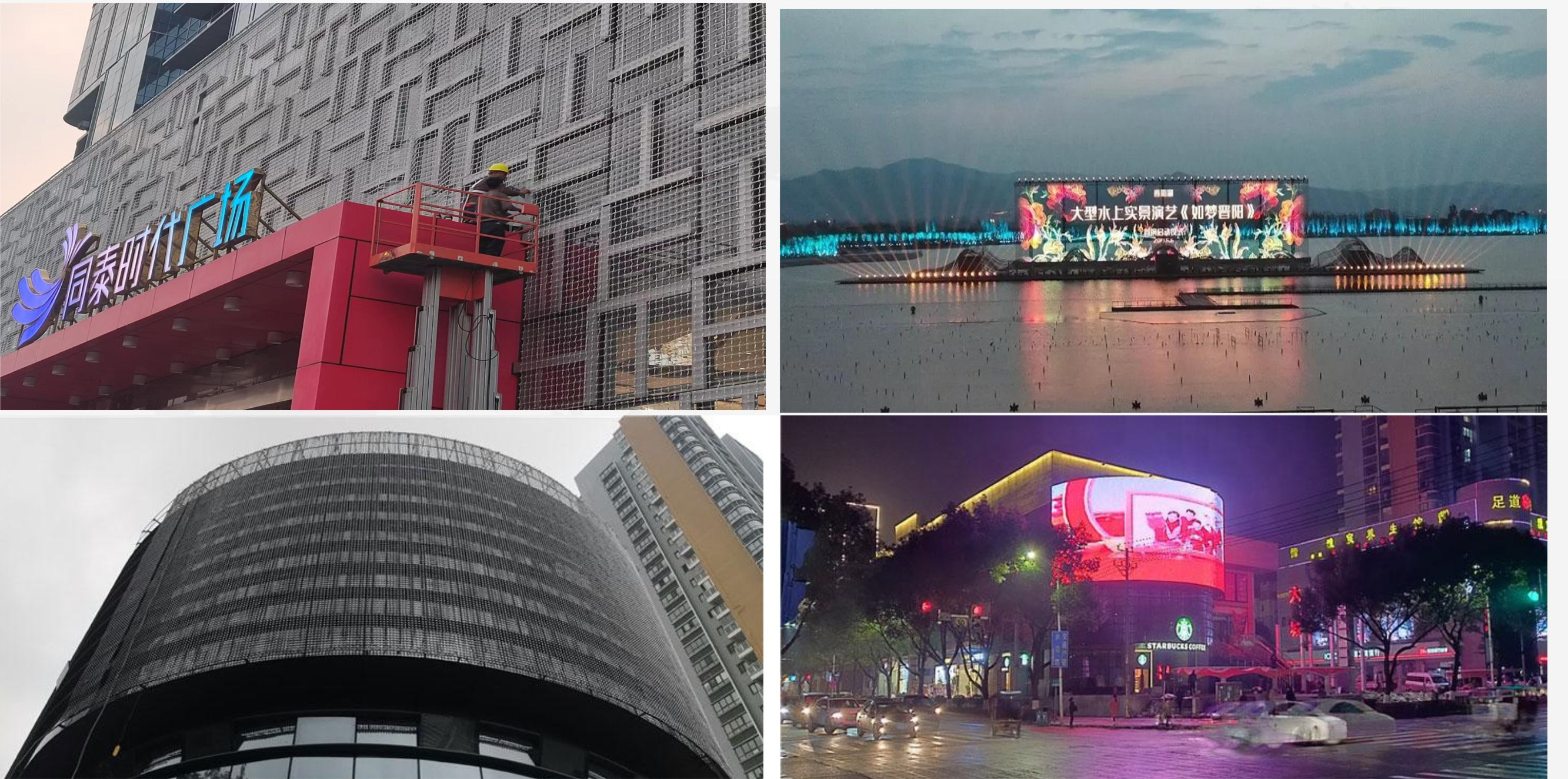

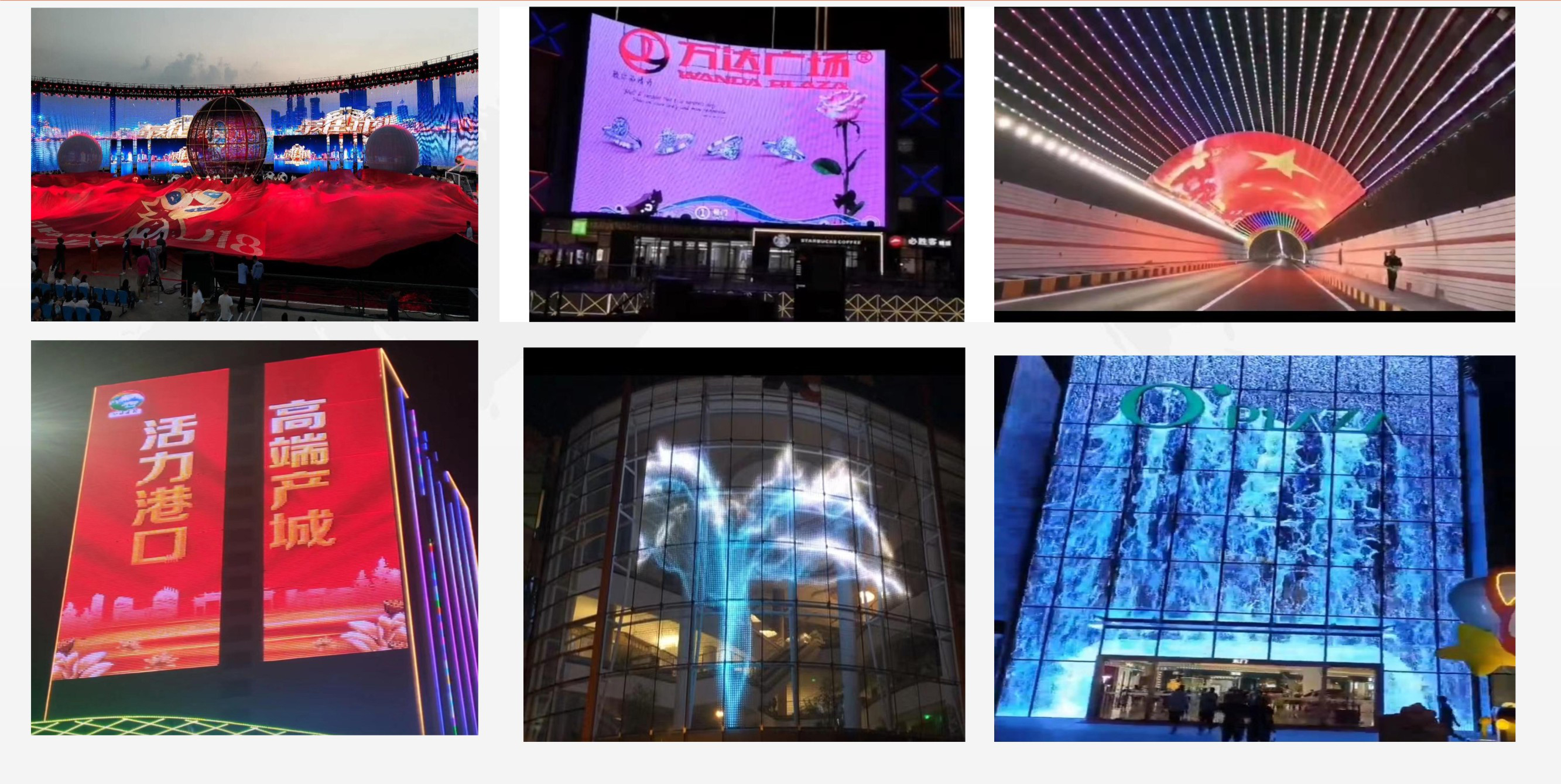

LED grid screens are highly versatile and ideal for business atmosphere creation, creative landscapes, hotel entertainment, tourist landmarks, commercial advertising, and high-rise building facades.
We adhere to a strict quality assurance workflow, which includes testing a pre-production sample before starting mass production and executing a comprehensive final inspection prior to shipment.
We offer a wide range of outdoor display products including mesh screens, point light sources, transparent screens, grille screens, and specialized building screens.

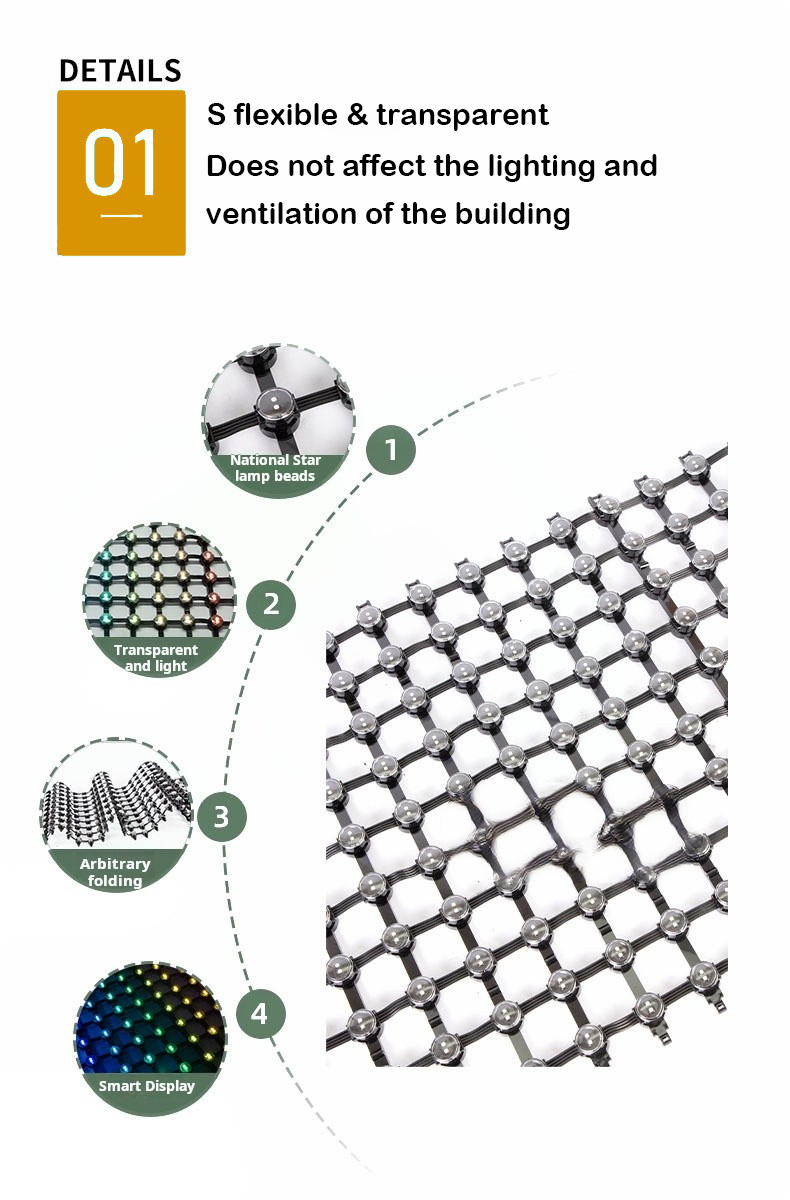

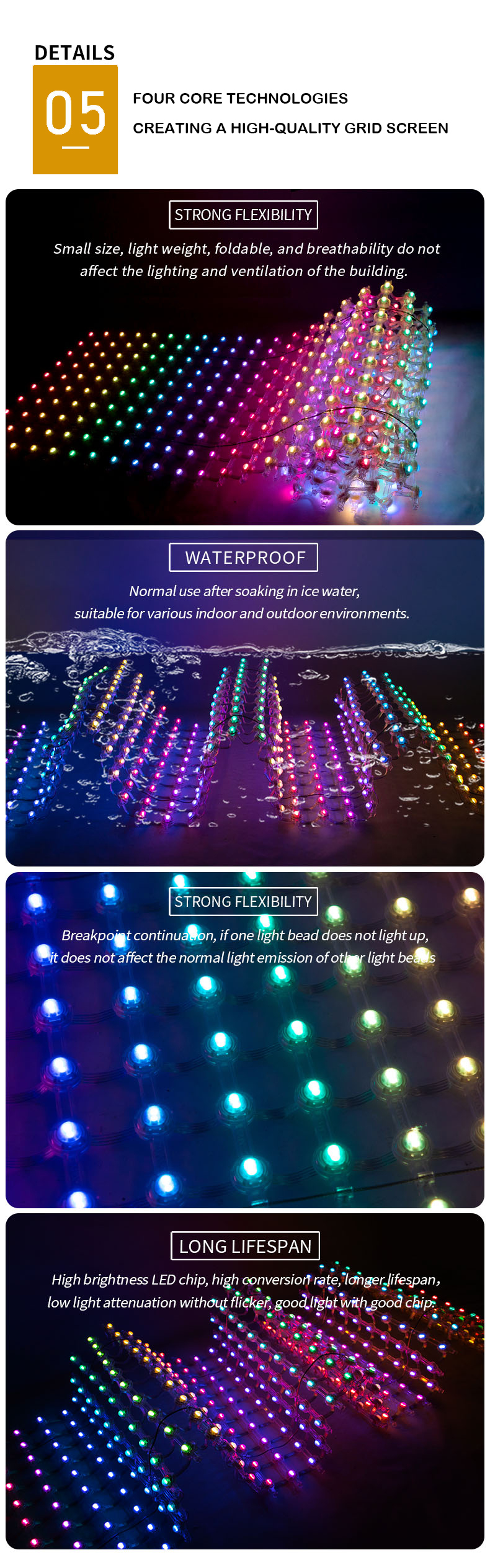

LED grid screens feature lightweight configurations, transparent designs that allow wind ventilation, high flexibility, and easy maintenance. They represent a cost-effective choice for large-area installations.
Our screens support multiple convenient control methods, allowing management through SD cards, computers, or mobile remote controllers.
We offer a 3-year warranty for breakpoint renewal and a 5-year warranty on the 512IC components for our P50 model spec.
