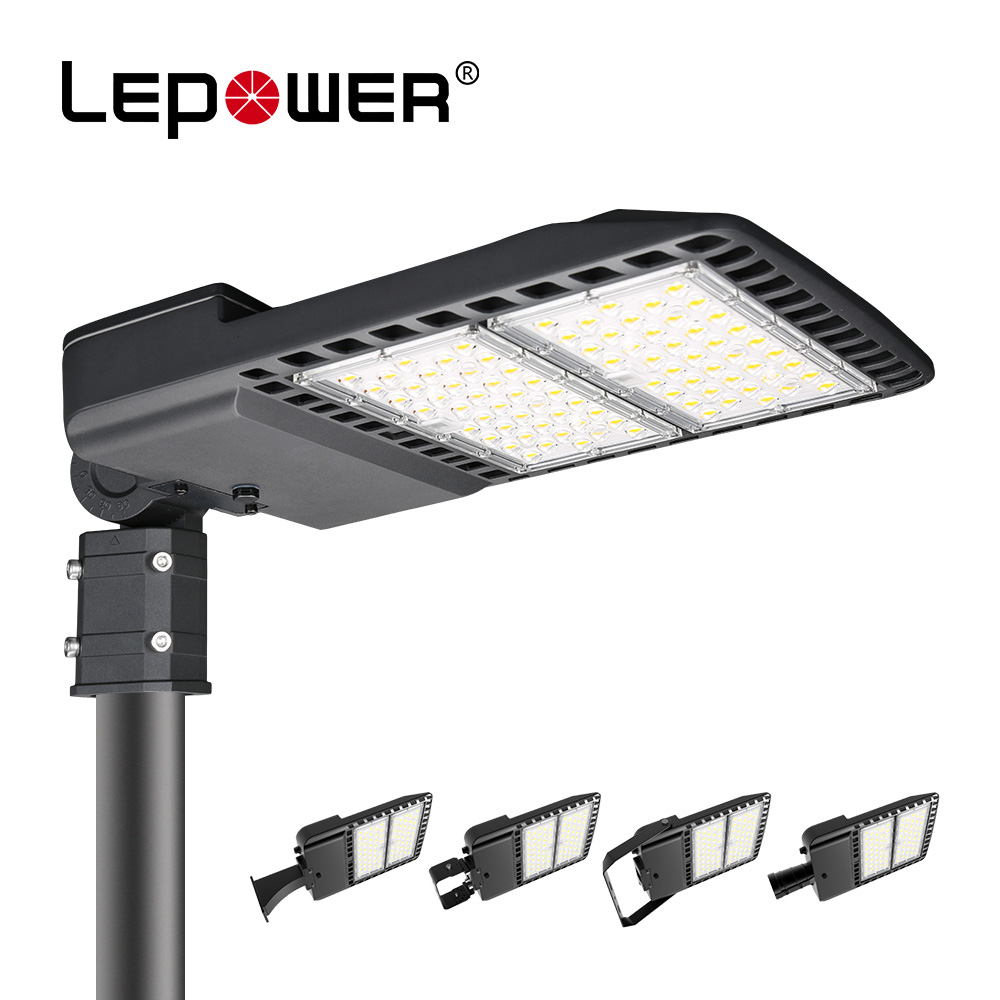

ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
1 / 5
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light

ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light

Send Inquiry

Product Description

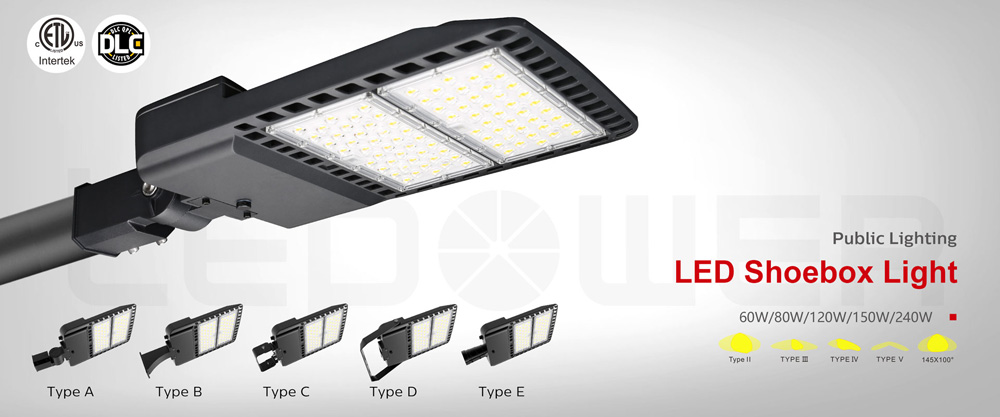

ETL DLC 100W 150W 300W LED Shoebox Street Light
160-170LM/W High efficiency design
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
Product Key Features
  • High pressure diecast aluminium alloy housing from 60W to 240W.
  • Anti-corrosion with electrophoresis process.

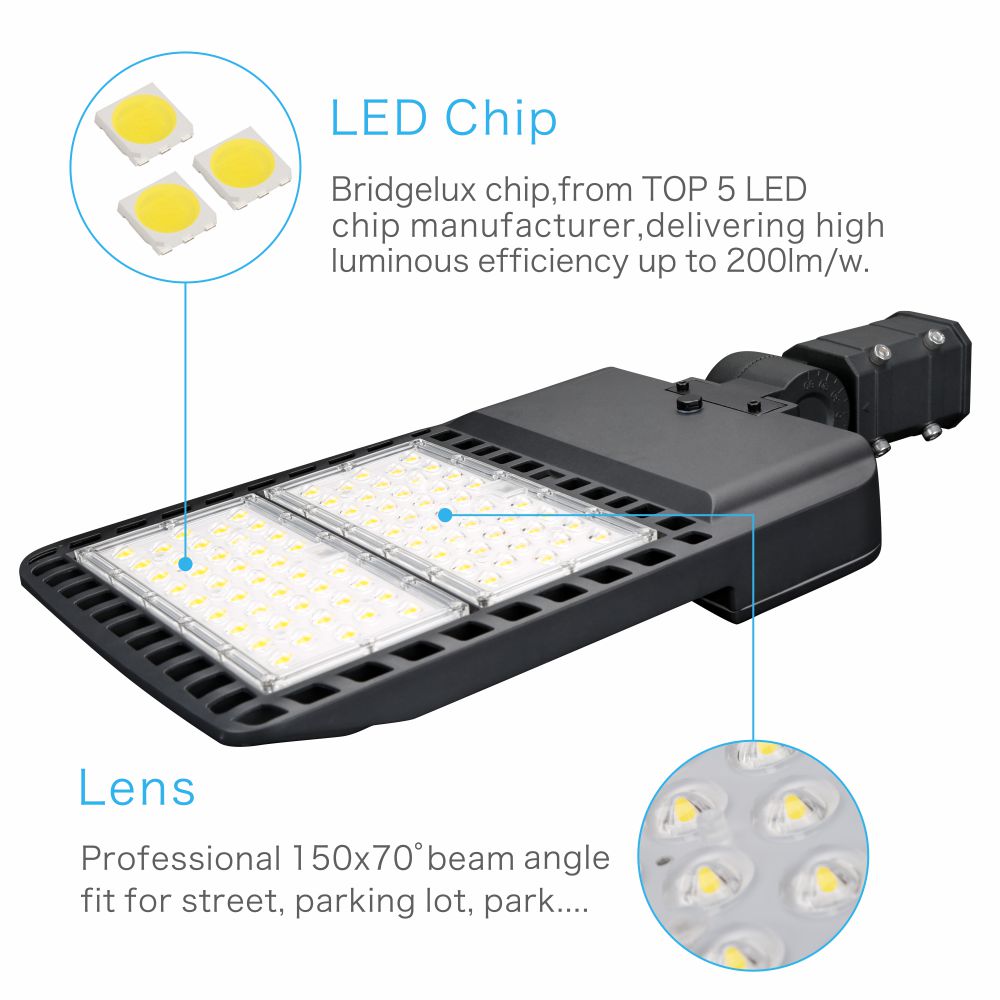

  • Adopt multi-chips package 5050 LED source. Stable performance, low light failure and NO dead lights.
  • The light transmittance of lens up to 98%. System efficacy up to 170lm/w.

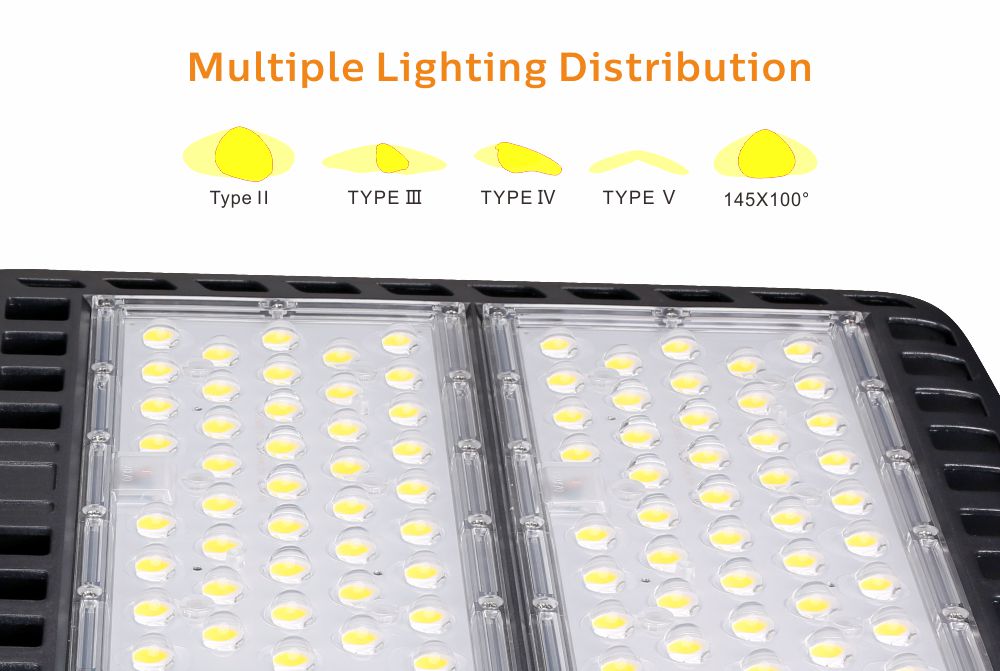

  • Type II, III, IV, V, 145x100° optional. Uniform lighting distribution apply to different lighting projects.

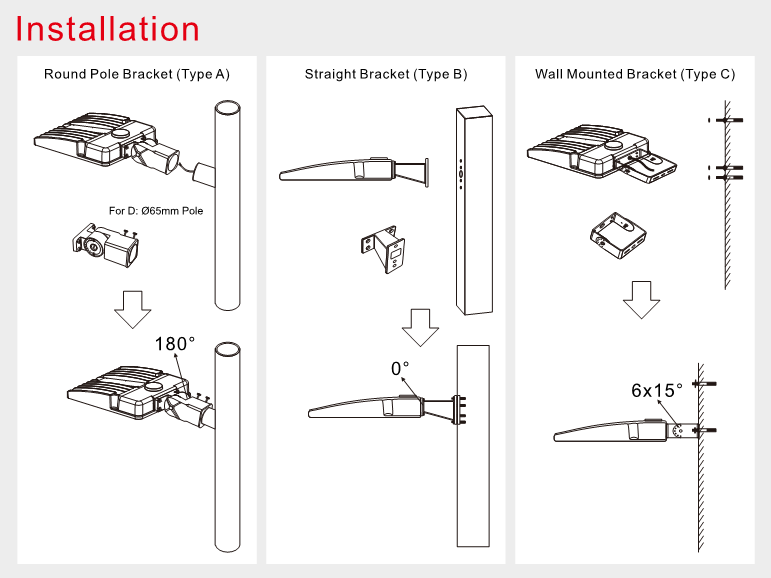

  • Type A, B, C, D, E brackets optional, nearly meet all installation environment.
  • Excellent operating temperature -40°C ~ 50°C.
  • Replaceable and upgradable modular design easy assembly easy installation and easy maintenance.
  • Green product, no UV, IR radiation or mercury pollution. Passed IEC62471.
  • With excellent housing design reach IP66/IK10 rating.
  • Dimming and smart lighting system available upon request.
  • ETL DLC CE ROHS IP66 IK10 LM80 approved.
  • Life-span over 50,000 hours, 5 years warranty.
Technical Specifications
No. Name Features
1 Type LY-XH0101 LY-XH0102 LY-XH0103
2 Power 40W-80W 100-150W 180W-240W
3 LED Qty. 3000K / 4000K / 5000K / 6500K
4 Beam Angle 150*70° 145*100° / Type III,IV,V
5 Brand of Chips 5050 LED
6 CCT 42pcs 84pcs 126pcs
7 CRI >70 / >80
8 System Efficiency 150-170Lm/W 150-170Lm/W 150-170Lm/W
10 IP Rate IP66
11 Voltage AC 90-305V
12 Working Environment -20°C~50°C, 20%~90% H.R
13 Storage Temperature -20°C~85°C, 10%~90% H.R
14 Driver Efficacy 90%
15 PF >0.95
16 Lifetime >50,000 Hours
17 Size of Lamp 494*310*84mm 621*310*84mm 769*320*93mm
18 Carton 360*360*130mm 475*360*130mm 632*376*138mm
19 N.W. 4.5KG 5.5KG 6.5KG
Detailed Product Images (30W-300W Series)
LED Shoebox Light Detail 1

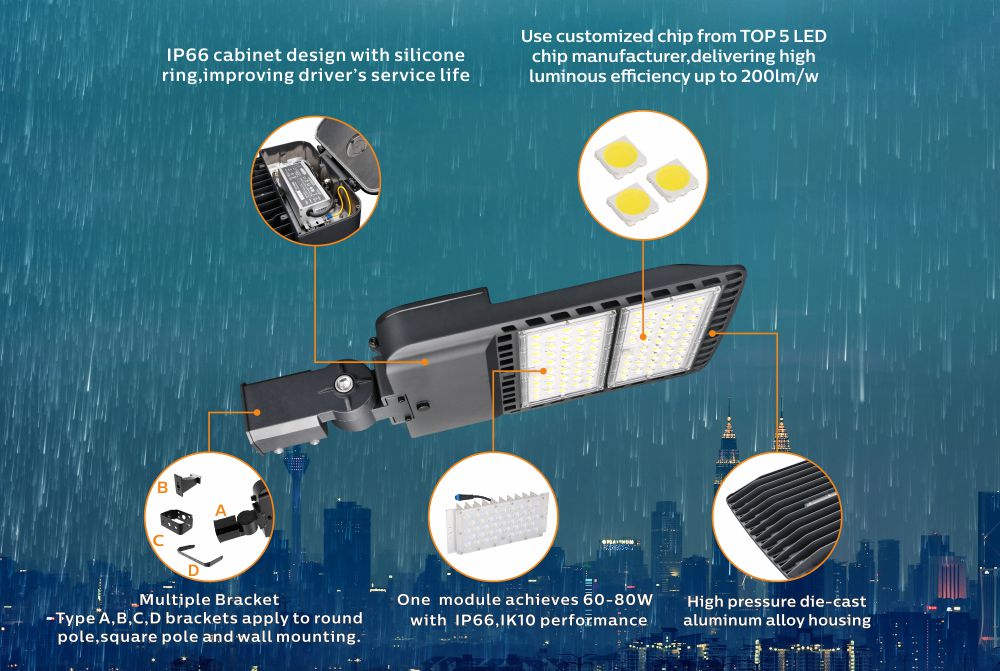

LED Shoebox Light Detail 2

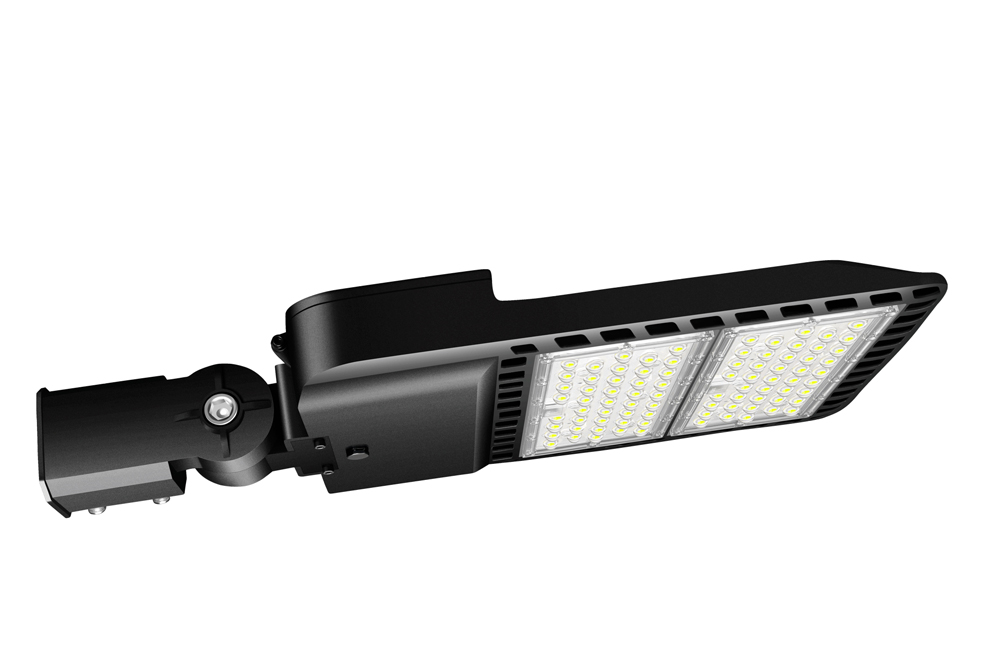

LED Shoebox Light Detail 3

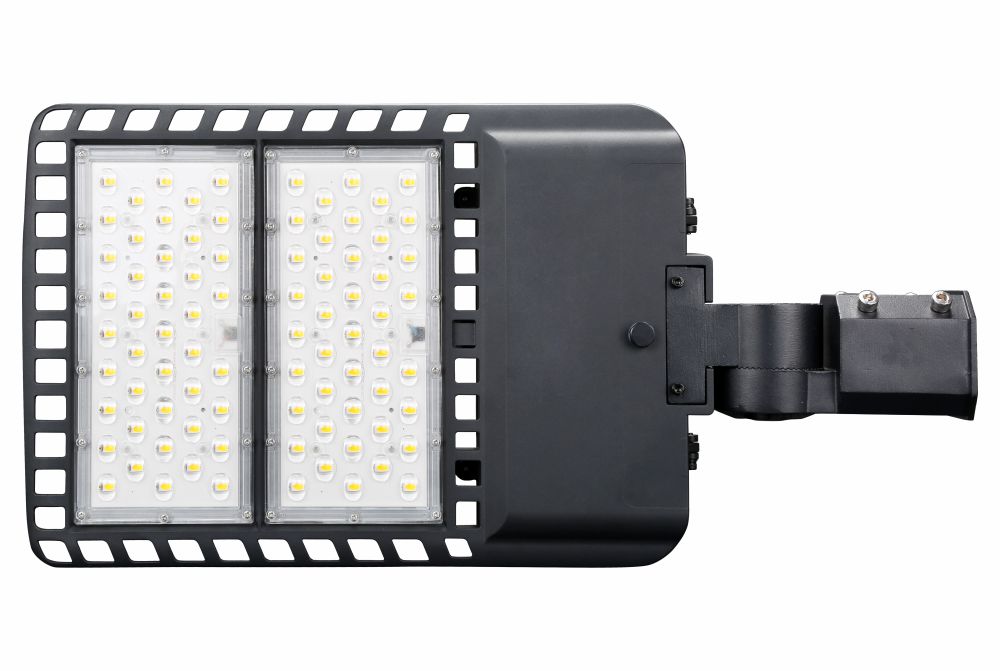

LED Shoebox Light Detail 4

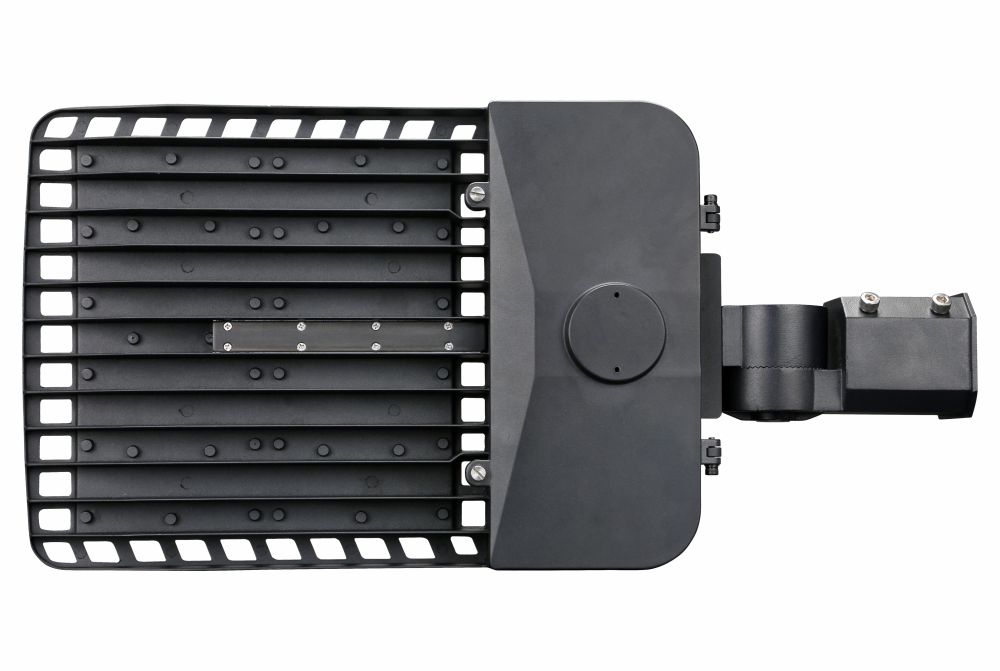

LED Shoebox Light Detail 5

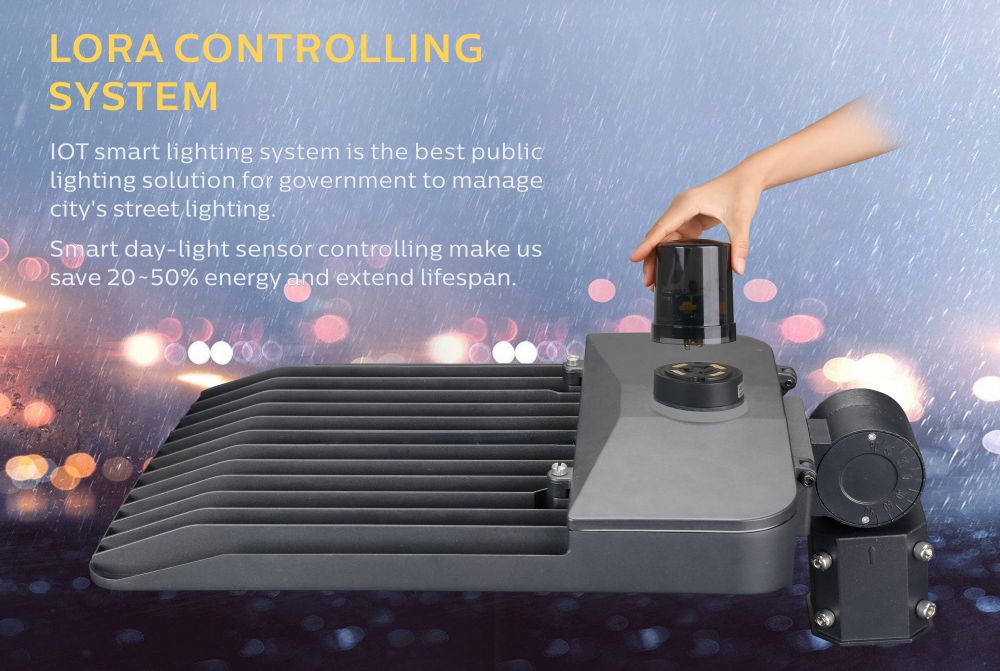

LED Shoebox Light Detail 6
LED Shoebox Light Detail 7
LED Shoebox Light Specification Dimension
Applications
  • Outdoor basketball court; tennis court
  • Badminton court; the football field
  • The school playground; stadium
  • Community leisure entertainment plaza; road lamp etc.
  • Exterior LED lighting for shoebox lighting, LED shoebox light fixtures, parking lot shoebox fixture, parking lot flood lighting.

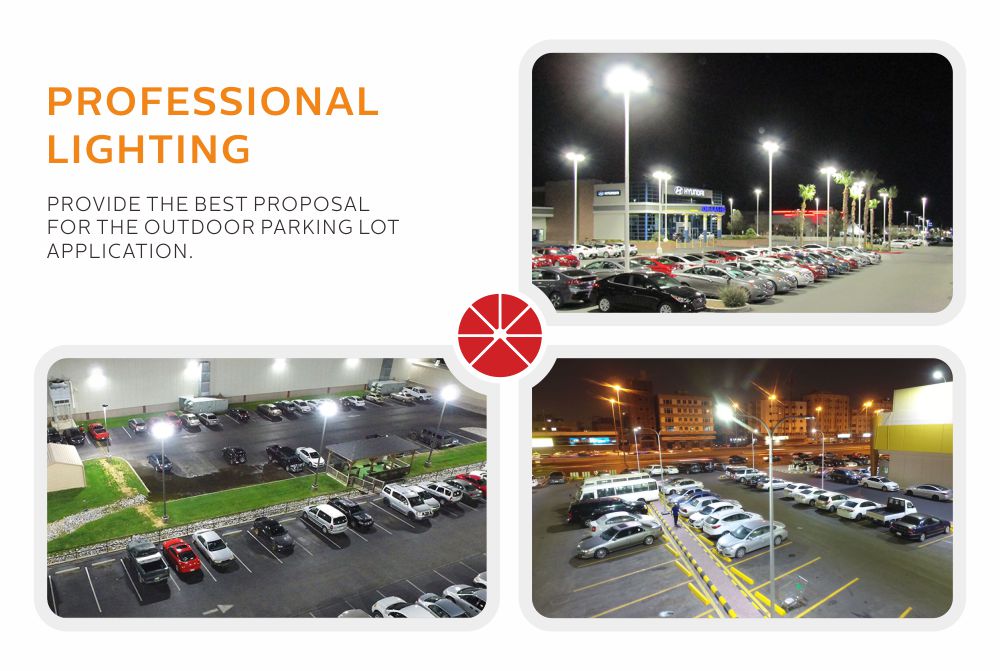

LED Shoebox Street Light Installation Application
Why We Reach 160lm/W for Complete Light?
  • Adoption exclusive light source and ZAG Lens. Compared with similar products, the luminous efficiency can rise 8% and light transmittance up to 98%.
  • LED chip reach 200lm/w.
  • Great durable heat sink, ensure the junction temperature rise less than 10°C.
  • LEDs which packaged by multi-chips is high lumen, stable performance, low light failure and no dead lights.
Production Showcase
Factory Facility 1

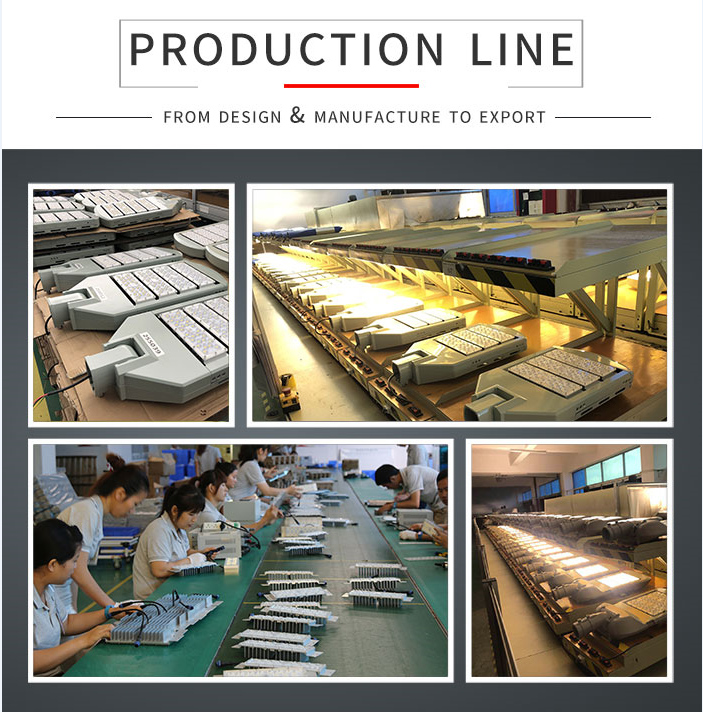

Factory Facility 2
Factory Facility 3
Trading Conditions
  • Payment term: 30% deposit by T/T or Western union; 70% before delivery.
  • Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
  • Samples time: 5 days.
  • Shipping terms: FOB Port.
  • Discounts will be determined by quantity.
  • Welcome distributors to cooperate together.
Quality Control
  • Before the order to be confirmed, we will check the material & color temperature by sample strictly.
  • We will be tracing the different phase of production from the beginning.
  • Every LED lights quality checked & cleaned before packing.
  • Before delivery clients could send one QC or point the third party to check the quality.
  • We will try our best to help clients when problem occurred.
Warranty Terms
  • 3/5 years warranty.
  • Under the terms of this warranty, if the product has a failure under normal usage within warranty period, we will provide free/rework new products based on proof-documents.
  • If failure or damage due to incorrect operation, wire connection, or anything else not following our instruction, we will provide paid maintenance within warranty period.
  • Product Standards: ETL / DLC / SAA / CE / RoHS / TUV / UL.
Frequently Asked Questions
Can we make our own label on the sample lights?
Yes, we can use the label you offer, and we can also do OEM & ODM.
Our project is on the seaside, what if your lights are corroded by sea water?
Metal has high corrosion resistance. Besides, we perform professional surface treatments: electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrosion.
I really would like to try a sample first, is that possible?
Yes, absolutely. Our MOQ is only 1 piece. It is easy to get to know each other better via samples, and we focus on long-term and win-win cooperation.
We have outdoor projects that need lighting design, can you help us?
Sure we can. We are a leading outdoor high-power LED light supplier, and our design teams can provide you with the best solutions. If you have the capacity to make the design yourself, we can provide the IES files for you.
I have a parking lot, street, or highway project. What details should I provide for suggestions?
Please provide us with:
A: The width of the street.
B: The arrangement and the height of the light poles.
C: The requirement of the illumination.
What certifications do these LED shoebox lights comply with?
Our products are manufactured according to strict quality standards and carry certifications including ETL, DLC, SAA, CE, RoHS, TUV, and UL.
Contact us now to get the full quotation list.
We will provide you with a new, better, and professional lighting solution.
