| Parameters | Details | ||||||
|---|---|---|---|---|---|---|---|
| Model | SW-TS09-W1000 | ||||||
| Watt | 250W | 500W | 750W | 1000W | 1250W | 1500W | 2000W |
| Lumens | 37500lm | 75000lm | 112500lm | 150000lm | 187500lm | 225000lm | 300000lm |
| Efficiency | 140-150LM/W | ||||||
| Input Voltage | AC100-277V, 50/60Hz, 347V, 480V for option | ||||||
| Driver | SOSEN & Inventronics | ||||||
| PF | >0.97 | ||||||
| IP Grade | IP66/IK10 | ||||||
| THD | 10% (at 230v, 50Hz) | ||||||

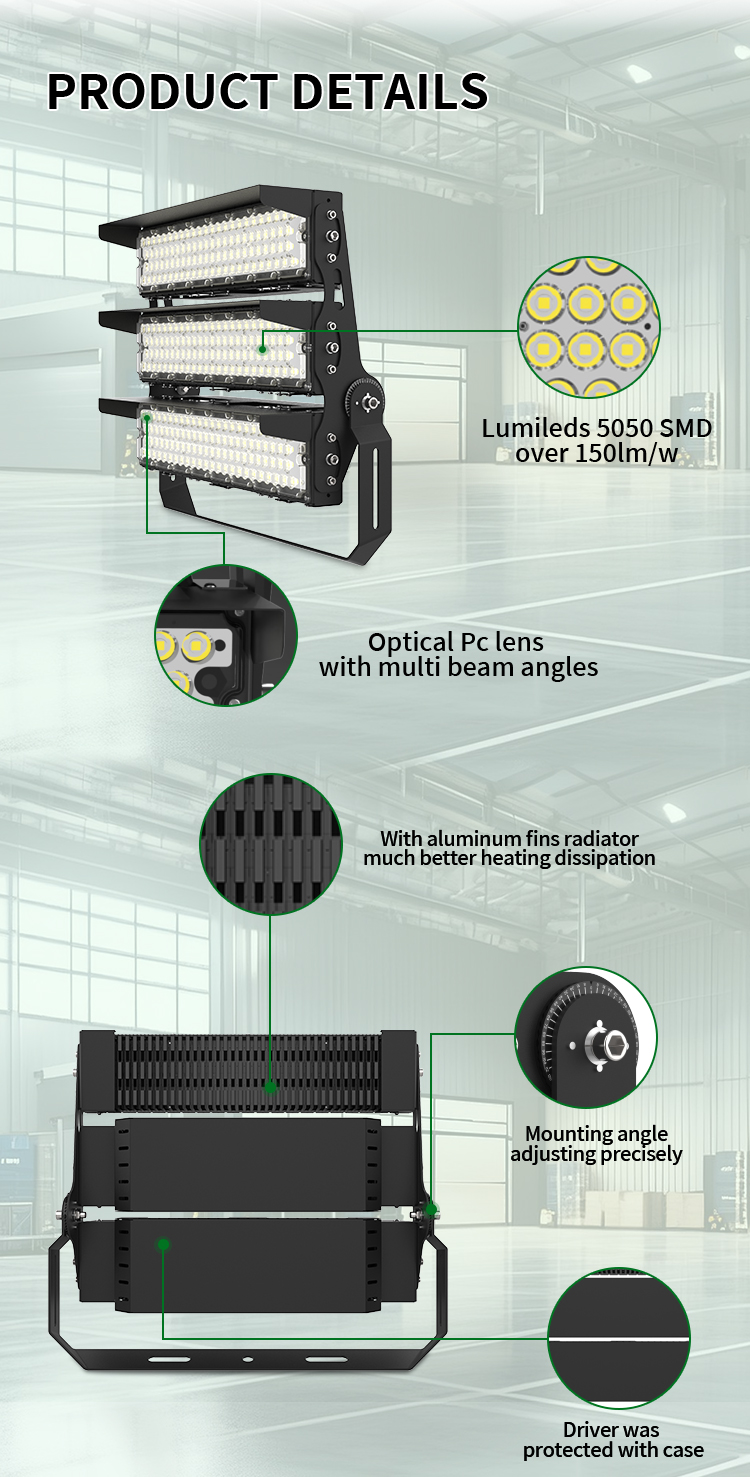

| LED Chip | SMD 5050 | ||||||
| Surge Protection | L/N-PE:10KV, L-N:6KV; 20KV version is for option. | ||||||
| Color Temp | Warm White: 2700-3200K | Natural White: 4000-4500K/5000-5500K | Cool White: 5700-6500K | ||||||
| CRI | >70Ra | ||||||
| Beam Angle | 20°, 40°, 60°, 90°, 50°(asymmetrical) | ||||||
| Body Material | Die casting aluminum | ||||||
| Lens Material | PC lens | ||||||
| Body Color | Black | ||||||
| Operating Temp | -35℃ - 50℃ | ||||||
| Warranty | 5 years warranty | ||||||
| Certificates | ENEC, CB, SAA, EMC, ETL, LVD, RCM, IEC, IP66, IK10, ERP, ISO9001, ISO14001, CE, RoHS etc | ||||||

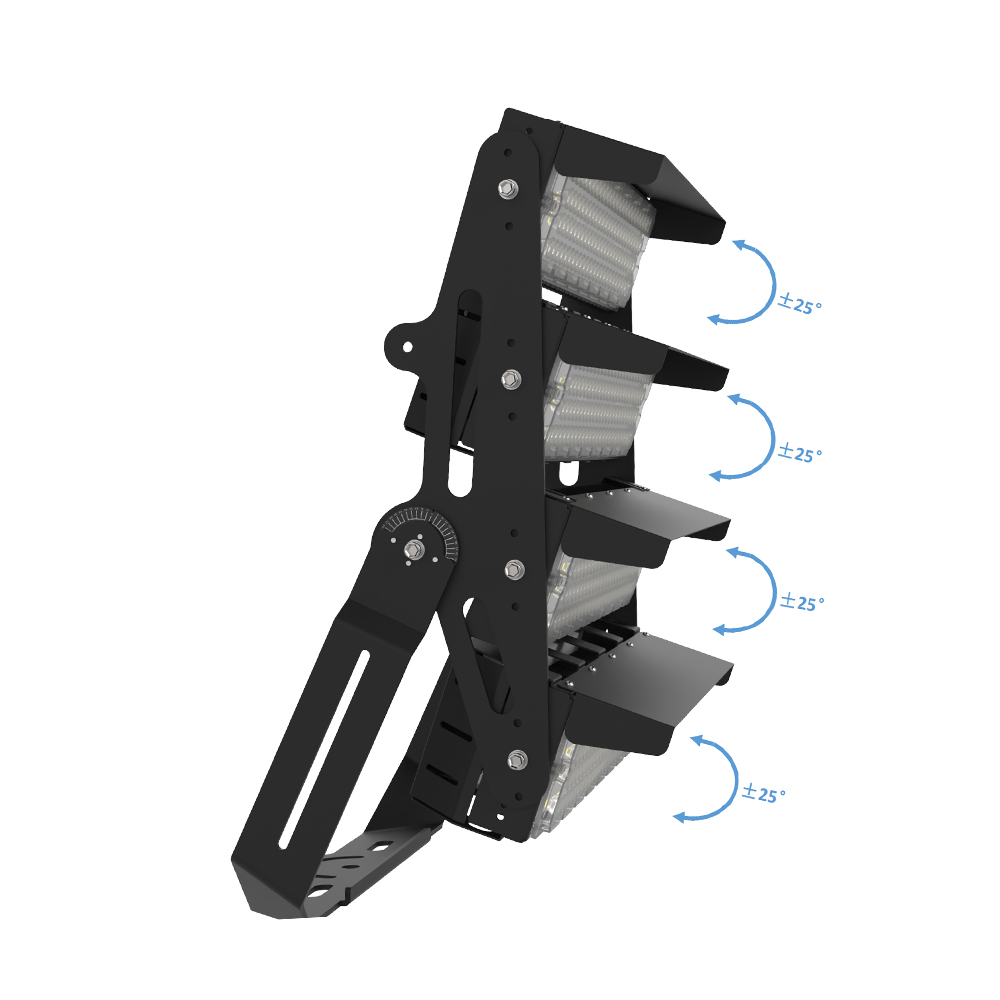

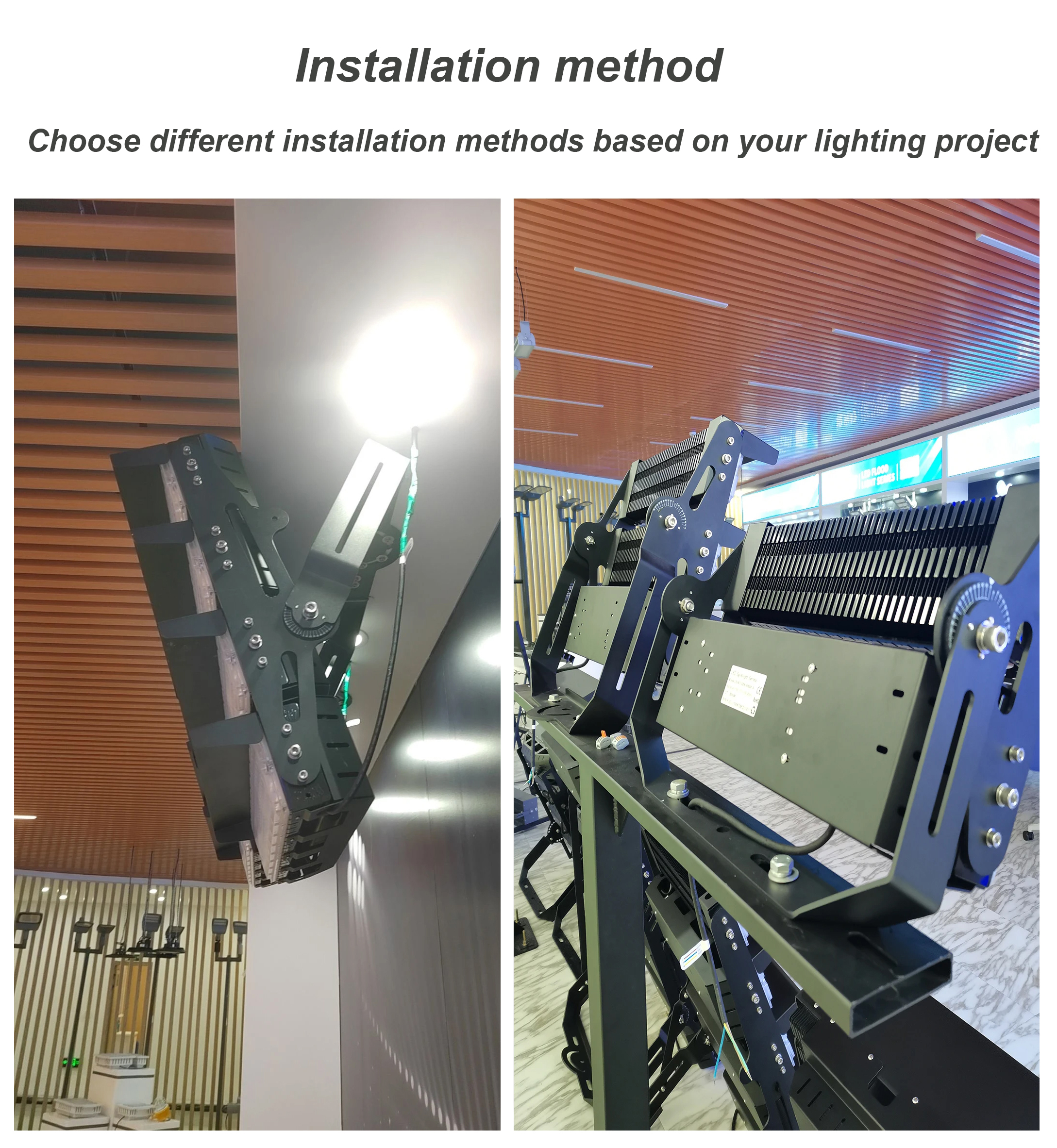

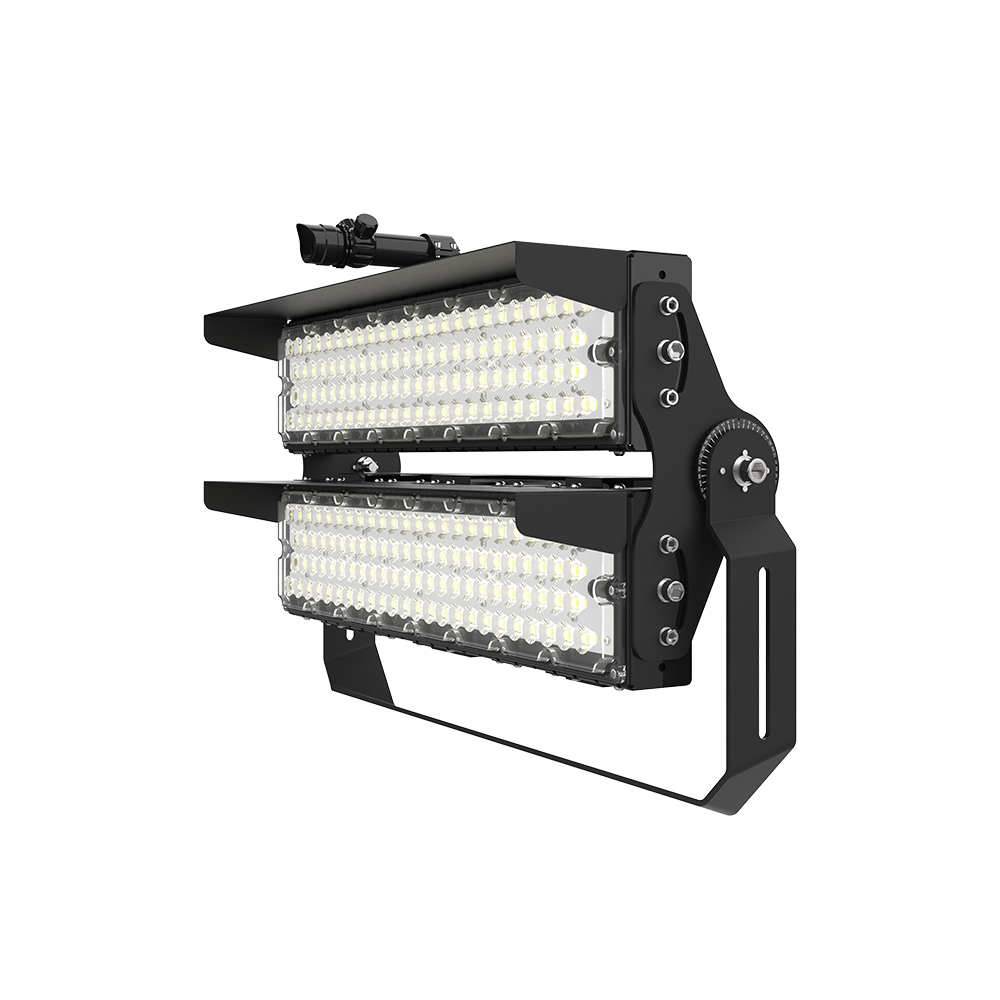

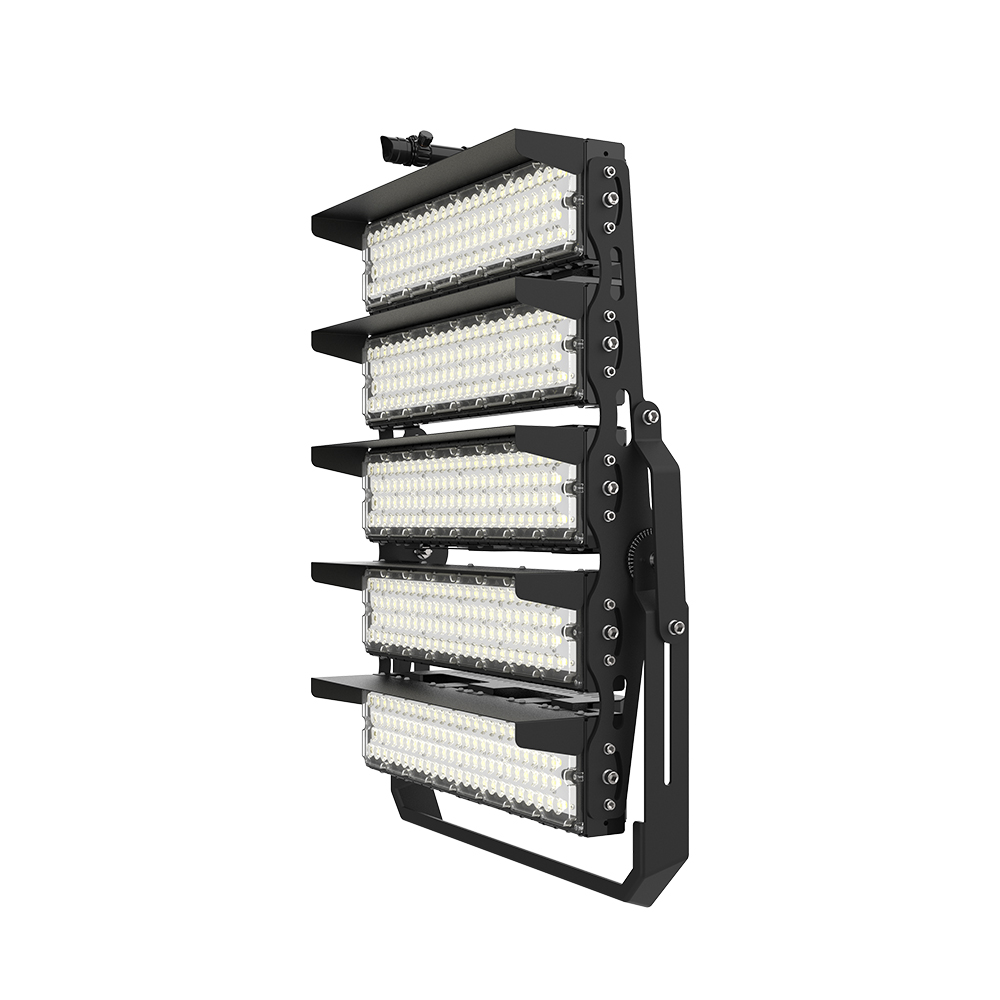

The bracket can be adjusted to 217°, which strengthens its thickness, the double bracket installation is more stable and safe, the fixtures and mounting brackets are much thicker (5mm).
The back design is more waterproof, our wires are installed inside. Don't worry about water entering in rainy days to avoid electric shock.

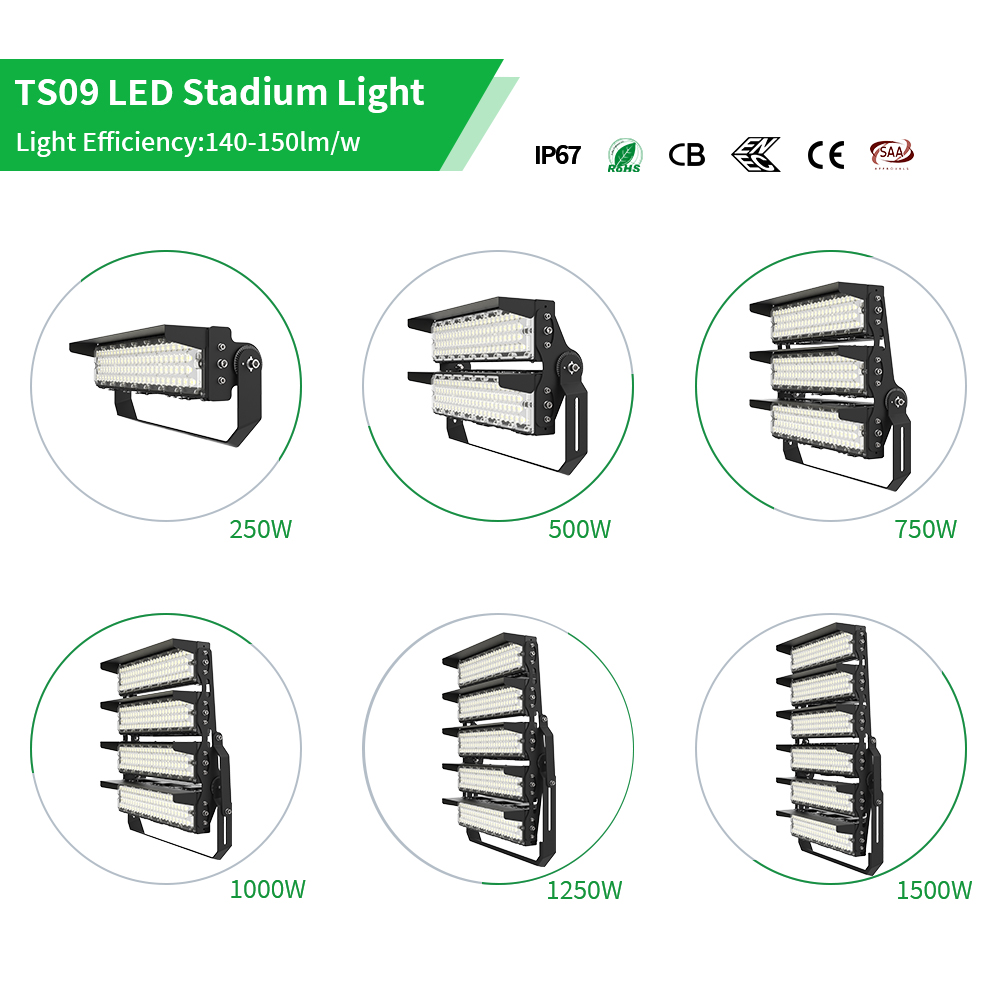

| Model | Power | Lumen | Net W. / Gross W. | Packing Size |
|---|---|---|---|---|
| SW-TS09-W250-X | 250W | 37500lm | 12.25KGS / 14.00KGS | 30X63X28CM |
| SW-TS09-W500-X | 500W | 75000lm | 12.25KGS / 14.00KGS | 58X66X31CM |
| SW-TS09-W750-X | 750W | 112500lm | 16.8KGS / 18.5KGS | 70X66X31CM |
| SW-TS09-W1000-X | 1000W | 150000lm | 22.30KGS / 24.20KGS | 83x66x31CM |
| SW-TS09-W1250-X | 1250W | 187500lm | 26.5KGS / 28.5KGS | 95x66x31CM |
| SW-TS09-W1500-X | 1500W | 225000lm | 29.25KGS / 32.00KGS | 108x66x31CM |
| SW-TS09-W2000-X | 2000W | 300000lm | 40.5KGS / 43.00KGS | 137x63x30CM |
Our main markets are in Europe, South America, Australia, and also exported to North America and some Asian markets. All of our items are certified with CE (EMC, LVD), ROHS, and many of them are with ETL, DLC, ENEC, SAA, etc.

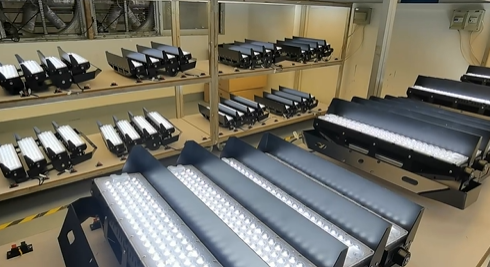

We have 17 years experience in the LED lighting field, with a well-trained team to research and develop new products, and a responsible QC team to control the quality from materials to finished products delivery.

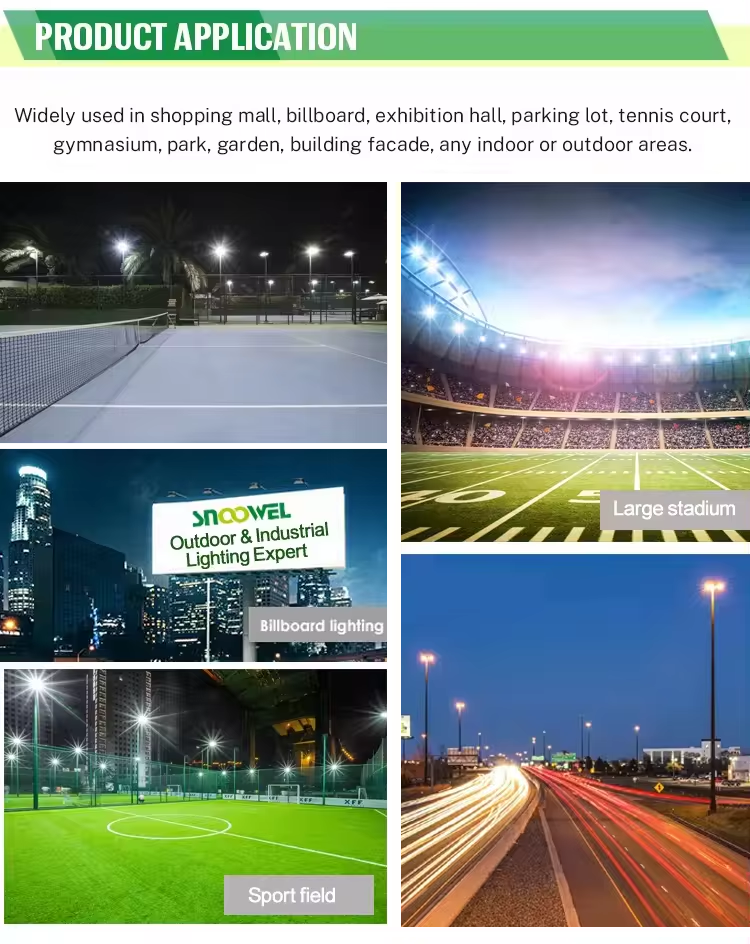

Our products include LED Flood Lights, LED Stadium Lights, LED Tunnel Lights, LED Street Lights, UFO LED High Bay Lights, Linear LED High Bay, LED Shoebox Lights, LED Canopy Lights, LED Garden Lights, LED Facade Lights, and LED Spotlight Series, which are widely used. We have a variety of indoor and outdoor products that can meet your needs.
Experienced supplier in LED lighting industry for 17 years.
OEM/ODM services are available, welcome custom sample orders.
Thanks for your attention on our LED Stadium Flood Light. We provide high quality goods.
